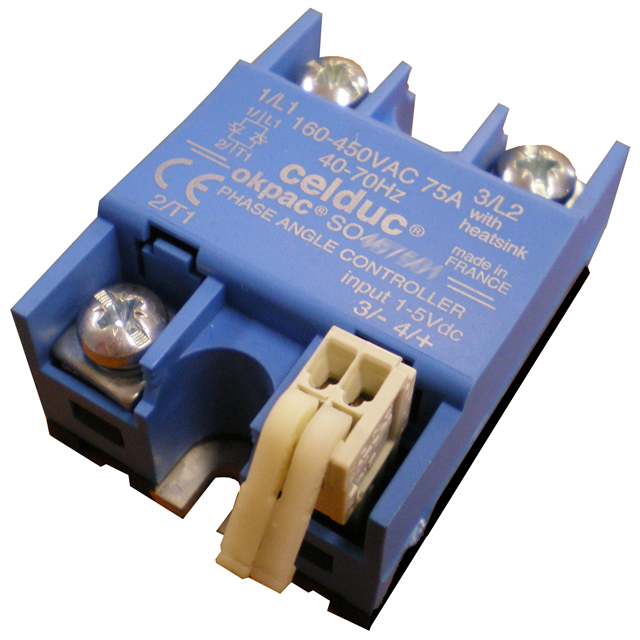

SO367001
ActiveCelduc Inc.
SSR RELAY SPST-NO 75A 160-450V
SO367001
ActiveCelduc Inc.
SSR RELAY SPST-NO 75A 160-450V
Description
General part information
SO3670 Series
Solid State SPST-NO (1 Form A) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SO367001 |
|---|---|
| Approval Agency | CE |
| Circuit | SPST-NO (1 Form A) |
| Load Current | 75 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) | 4.8 mOhms |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Proportional Control, AC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input | 10 VDC |
| Voltage - Input (DC) Maximum | 10 VDC |
| Voltage - Input (DC) Minimum | 0 V |
| Voltage - Load (Max) | 450 V |
| Voltage - Load (Min) | 160 V |
