5702-4"X36YD

Active

3M (TC)

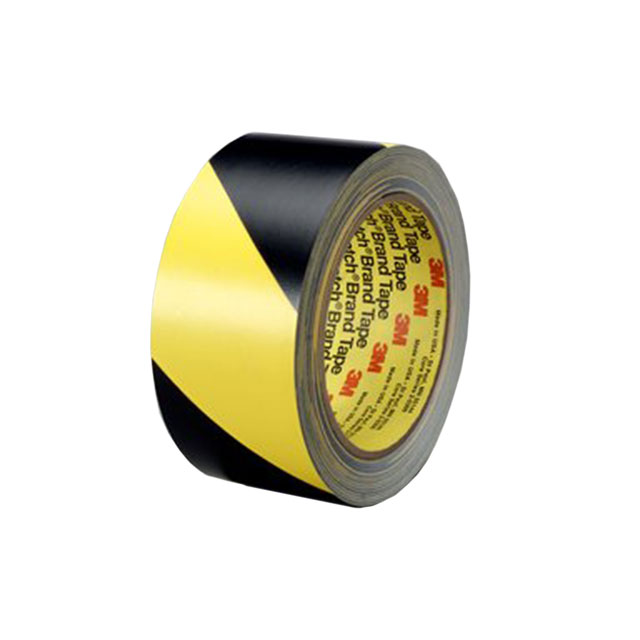

TAPE MARKING BLK/YELLOW 4"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE MARKING BLK/YELLOW 4"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	5702-4"X36YD

Adhesive	Rubber
Backing, Carrier	Vinyl
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Temperature Range [Max]	77 °C, 170 °F
Temperature Range [Min]	40 °F, 4 °C
Thickness	0.0054 in
Thickness	0.137 mm
Thickness	5.4 mils
Thickness - Adhesive	0.03 mm
Thickness - Adhesive	0.0012 in
Thickness - Adhesive	1.2 mils
Thickness - Backing, Carrier	0.107 mm
Thickness - Backing, Carrier	0.0042 in
Thickness - Backing, Carrier	4.2 mils
Usage	Aisle Marking
Width [x]	4 "
Width [x]	101.6 mm

Part	Backing, Carrier	Temperature Range [Min]	Temperature Range [Max]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Shelf Life	Thickness	Thickness	Thickness	Usage	Shelf Life Start	Length	Length	Length	Adhesive	Width [y]	Width [y]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]
3M (TC) 5702-2"X36YD	Vinyl	4 °C 40 °F	77 °C 170 °F	0.03 mm	0.0012 in	1.2 mils	18 Months	0.0054 in	0.137 mm	5.4 mils	Aisle Marking	Date of Manufacture	36 yd	32.9 m	108 ft	Rubber	2 "	50.8 mm	16 °C 60 °F	27 °C 80 °F	0.107 mm	0.0042 in	4.2 mils
3M (TC) 5702-4"X36YD	Vinyl	4 °C 40 °F	77 °C 170 °F	0.03 mm	0.0012 in	1.2 mils	18 Months	0.0054 in	0.137 mm	5.4 mils	Aisle Marking	Date of Manufacture	36 yd	32.9 m	108 ft	Rubber			16 °C 60 °F	27 °C 80 °F	0.107 mm	0.0042 in	4.2 mils	4 "	101.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 143.72

General part information

Marking Tape Rubber Adhesive Black, Yellow 4.00" (101.60mm) X 108' (32.9m) 36 yds
