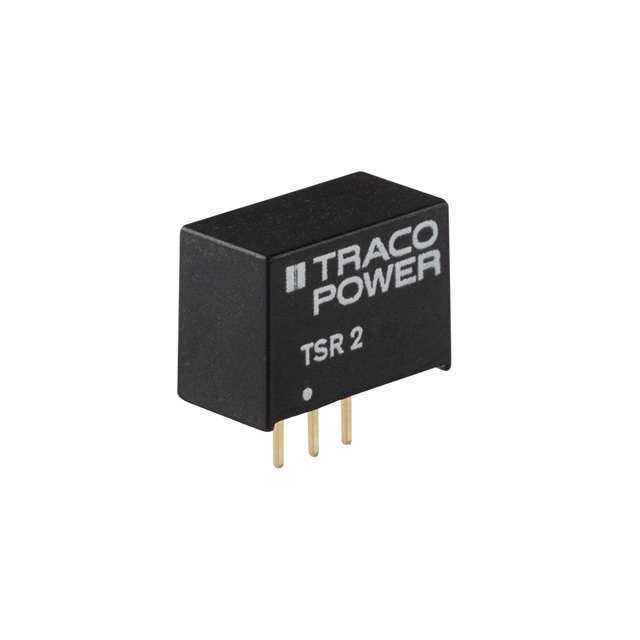

TSR 2-0515

Active

DC DC CONVERTER 1.5V 3W

Active

DC DC CONVERTER 1.5V 3W

Description

General part information

Linear Regulator Replacement DC DC Converter 1 Output 1.5V 2A 3V - 5.5V Input

Parameters and characteristics for this part

Specification	TSR 2-0515

Applications	ITE (Commercial)
Current - Output (Max)	2 A
Efficiency	91 %
Features	SCP, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	3-SIP Module
Power (Watts)	3 W
Size / Dimension Height	0.4 in
Size / Dimension Length	0.55 in
Size / Dimension Width	0.3 in
Type	Linear Regulator Replacement
Voltage - Input (Max)	5.5 V
Voltage - Input (Min)	3 V
Voltage - Output 1	1.5 V

Part	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Features	Power (Watts)	Voltage - Output 1	Type	Current - Output (Max)	Number of Outputs	Efficiency	Voltage - Input (Max)	Package / Case	Mounting Type	Voltage - Input (Min)	Operating Temperature (Max)	Operating Temperature (Min)	Applications
Traco Power TSR 2-0518	0.55 in	0.4 in	0.3 in	OCP SCP	3.6 W	1.8 V	Linear Regulator Replacement	2 A	1	92 %	5.5 V	3-SIP Module	Through Hole	3 V	85 °C	-40 °C	ITE (Commercial)
Traco Power TSR 2-2412	0.55 in	0.4 in	0.3 in	OCP SCP	2.4 W	1.2 V	Linear Regulator Replacement	2 A	1	84 %	36 V	3-SIP Module	Through Hole	4.6 V	85 °C	-40 °C	ITE (Commercial)
Traco Power TSR 2-24120	0.55 in	0.4 in	0.3 in	OCP SCP	24 W	12 V	Linear Regulator Replacement	2 A	1	95 %	36 V	3-SIP Module	Through Hole	15 V	85 °C	-40 °C	ITE (Commercial)
Traco Power TSR 2-2415	0.55 in	0.4 in	0.3 in	OCP SCP	3 W	1.5 V	Linear Regulator Replacement	2 A	1	86 %	36 V	3-SIP Module	Through Hole	4.6 V	85 °C	-40 °C	ITE (Commercial)
Traco Power TSR 2-24150	0.55 in	0.4 in	0.3 in	OCP SCP	30 W	15 V	Linear Regulator Replacement	2 A	1	96 %	36 V	3-SIP Module	Through Hole	18 V	85 °C	-40 °C	ITE (Commercial)
Traco Power TSR 2-0515	0.55 in	0.4 in	0.3 in	OCP SCP	3 W	1.5 V	Linear Regulator Replacement	2 A	1	91 %	5.5 V	3-SIP Module	Through Hole	3 V	85 °C	-40 °C	ITE (Commercial)
