0.5-5-5559I

Obsolete

3M (TC)

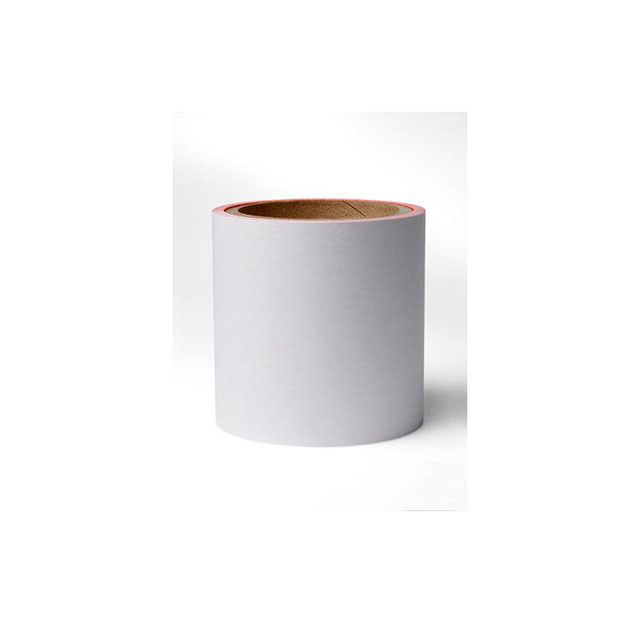

TAPE INDICATOR WHITE 1/2"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0.5-5-5559I

Obsolete

3M (TC)

TAPE INDICATOR WHITE 1/2"X5YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0.5-5-5559I

Adhesive	Acrylic
Backing, Carrier	Paper
Color	White
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Indicator
Temperature Range [Max]	65 °C
Temperature Range [Min]	-40 °F
Thickness	0.127 mm
Thickness	5 mils
Thickness	0.005 in
Width	0.5 in
Width	12.7 mm
Width	0.5 in

5559I Series

Part	Shelf Life Start	Shelf Life	Adhesive	Tape Type	Temperature Range [Min]	Temperature Range [Max]	Color	Thickness	Thickness	Thickness	Length	Length	Length	Backing, Carrier	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Width [x]	Width [x]	Usage	Width	Width	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Storage/Refrigeration Temperature	Width [diameter]	Width [diameter]	Width	Length [x]	Length [x]	Length [x]
3M (TC) 1-5-5559I	Date of Manufacture	18 Months	Acrylic	Indicator	-40 °F	65 °C	White	0.127 mm	5 mils	0.005 in	4.6 m	15 ft	5 yd	Paper	70 °F	21 °C	25.4 mm	1 in
3M (TC) 3M5559I-3MM-DISC-100	Date of Manufacture	18 Months	Acrylic	Indicator			White	0.127 mm	5 mils	0.005 in				Paper	70 °F	21 °C			Water Indication (Top Side Adhesive)	0.12 "	3 mm
3M (TC) 5559I	Date of Manufacture	18 Months	Acrylic	Indicator			White	0.127 mm	5 mils	0.005 in				Paper		71 °F			Water Indication (Top Side Adhesive)			0.002 "	0.051 mm	2 mils	21 °C
3M (TC) 3M5559I-2MM-DISC-100	Date of Manufacture	18 Months	Acrylic	Indicator			White	0.127 mm	5 mils	0.005 in				Paper	70 °F	21 °C			Water Indication (Top Side Adhesive)							2.03 mm	0.08 in
3M (TC) 3M5559I-4MM-DISC-100	Date of Manufacture	18 Months	Acrylic	Indicator			White	0.127 mm	5 mils	0.005 in				Paper	70 °F	21 °C			Water Indication (Top Side Adhesive)	0.16 in	4 mm
3M (TC) 0.5-5-5559I	Date of Manufacture	18 Months	Acrylic	Indicator	-40 °F	65 °C	White	0.127 mm	5 mils	0.005 in	4.6 m	15 ft	5 yd	Paper	70 °F	21 °C				0.5 in	12.7 mm							0.5 in
3M (TC) 5559I-4"-10YD	Date of Manufacture	18 Months	Acrylic	Indicator			White	0.127 mm	5 mils	0.005 in				Paper	70 °F	21 °C	101.6 mm	4 "	Water Indication										30 ft	9.1 m	10 yds

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

5559I Series

Indicator Tape Acrylic Adhesive White 0.50" (12.70mm) 1/2" X 15' (4.6m) 5 yds
