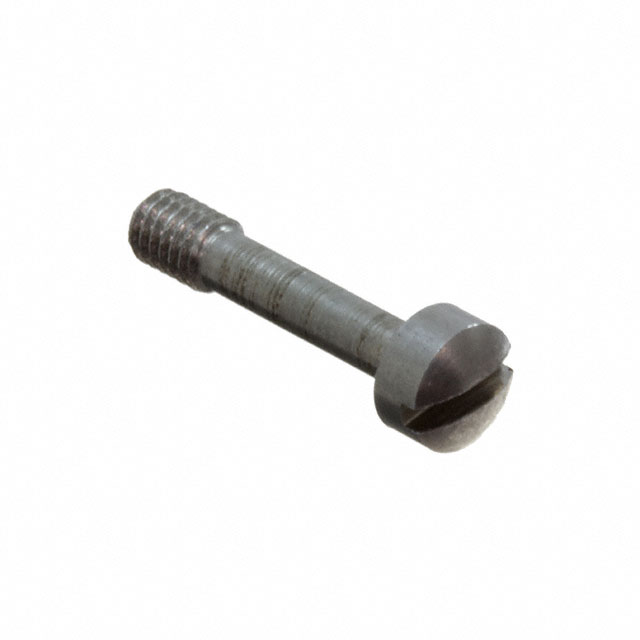

M0315-SS
ActiveRAF Electronic Hardware
6.4MM HD X 19MM X M4 THD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsM0296-M0323 Cut Sheet
M0315-SS
ActiveRAF Electronic Hardware
6.4MM HD X 19MM X M4 THD
Deep-Dive with AI
DocumentsM0296-M0323 Cut Sheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M0315-SS |
|---|---|
| Drive Type | Slotted |
| Head Diameter [diameter] | 6.4 mm |
| Head Diameter [diameter] | 0.252 in |
| Head Height [z] | 0.157 in |
| Head Height [z] | 4 mm |
| Length - Below Head [x] | 19 mm |
| Length - Below Head [x] | 0.748 in |
| Length - Overall [x] | 0.906 in |
| Length - Overall [x] | 23 mm |
| Material | Stainless Steel |
| Screw Head Type | Pan Head |
| Thread Size | M4x0.7 |
| Type | Panel Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.19 | |
| 5 | $ 1.85 | |||
| 10 | $ 1.73 | |||
| 25 | $ 1.60 | |||
| 50 | $ 1.51 | |||
Description
General part information
M0315 Series
M4x0.7 Pan Head Panel Screw Slotted Drive Stainless Steel
