AM10TW-2405SZ

Active

aimtec

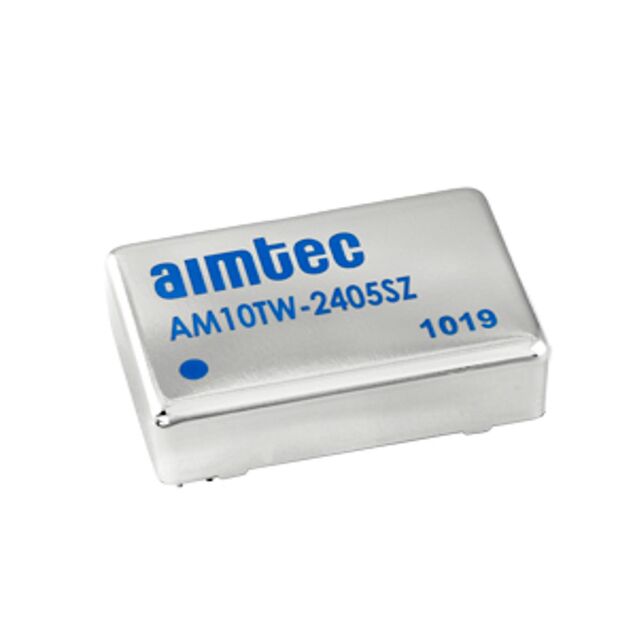

DC DC CONVERTER 5V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM10TW-2405SZ

Active

aimtec

DC DC CONVERTER 5V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 28.59
		10	$ 25.13
		25	$ 23.87
		50	$ 22.96
		100	$ 22.09
		250	$ 20.98

Description

General part information

AM10T Series

Isolated Module DC DC Converter 1 Output 5V 2A 9V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM10TW-2405SZ	AM10T Series

Applications	ITE (Commercial)	Medical, ITE (Commercial)
Approval Agency	IEC, cURus, UL, EN, CE	UL, CE, IEC, cURus, EN
Current - Output (Max)	-	1 - 420 mA
Current - Output (Max)	-	1 - 420 mA
Current - Output (Max) [Max]	2 A	2 - 833 mA
Efficiency	87 %	83 - 88 %
Features	Remote On/Off	Remote On/Off
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	24-DIP Module, 8 Leads	24-DIP Module, 8 Leads, 24-DIP Module
Package / Case	-	9 PC Pad
Power (Watts)	10 W	10 W
Size / Dimension	-	20 mm
Size / Dimension	-	10.8 mm
Size / Dimension [x]	31.8 mm	31.6 - 32 mm
Size / Dimension [x]	1.25 "	1.24 - 1.26 in
Size / Dimension [y]	0.8 in	0.79 - 10.78 "
Size / Dimension [y]	20.3 mm	20.1 - 20.3 mm
Size / Dimension [z]	0.4 "	0.39 - 0.42 in
Size / Dimension [z]	10.2 mm	10 - 10.2 mm
Standard Number	62368-1	62368-1
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	18 - 75 V
Voltage - Input (Min) [Min]	9 V	9 - 36 V
Voltage - Isolation	1.6 kV	1.5 - 5000 V
Voltage - Output 1	5 V	3.3 - 24 V
Voltage - Output 1	-	5 - 15 V
Voltage - Output 1	-	-15 - -5 V
Voltage - Output 2	-	-15 - -5 V

AM10T Series

DC DC CONVERTER 15V 10W

Part	Applications	Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Number of Outputs	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Output 1	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Features	Package / Case	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 2	Standard Number	Package / Case
aimtec AM10TWM-2415SH50YZ	Medical	Isolated Module	670 mA	9 V	Through Hole	1	5000 V	36 V	15 V	10 W	0.79 "	1.24 in	20.1 mm	31.6 mm	10 mm	0.39 in	Remote On/Off	24-DIP Module, 8 Leads	84 %
aimtec AM10T-1212SNZ	ITE (Commercial)	Isolated Module	833 mA	9 V	Through Hole	1	1.5 kV	18 V	12 V	10 W	10.78 in	1.26 in		32 mm		0.42 in	Remote On/Off	24-DIP Module	87 %	85 °C	-40 °C	20 mm	10.8 mm
aimtec AM10TW-2415D-NZ	ITE (Commercial)	Isolated Module		9 V	Through Hole	2	1.5 kV	36 V		10 W							Remote On/Off	24-DIP Module	87 %	85 °C	-40 °C			CE, UL	330 mA	330 mA	15 V	-15 V	-15 V
aimtec AM10TW-2405SZ	ITE (Commercial)	Isolated Module	2 A	9 V	Through Hole	1	1.6 kV	36 V	5 V	10 W	0.8 in	1.25 "	20.3 mm	31.8 mm	10.2 mm	0.4 "	Remote On/Off	24-DIP Module, 8 Leads	87 %	85 °C	-40 °C			CE, cURus, EN, IEC, UL						62368-1
aimtec AM10TWM-4812DH50YZ	Medical	Isolated Module		18 V	Through Hole	2	5000 V	75 V	12 V	10 W	0.79 "	1.24 in	20.1 mm	31.6 mm	10 mm	0.39 in	Remote On/Off	24-DIP Module, 8 Leads	85 %						420 mA	420 mA			-12 V
aimtec AM10T-2415SNZ	ITE (Commercial)	Isolated Module	667 mA	18 V	Through Hole	1	1.5 kV	36 V	15 V	10 W								24-DIP Module	87 %	85 °C	-40 °C										9 PC Pad
aimtec AM10TWM-4815DH50YZ	Medical	Isolated Module	340 mA	18 V	Through Hole	2	5000 V	75 V	15 V	10 W	0.79 "	1.24 in	20.1 mm	31.6 mm	10 mm	0.39 in	Remote On/Off	24-DIP Module, 8 Leads	85 %										-15 V
aimtec AM10TWM-2403SH50YZ	Medical	Isolated Module	2.5 A	9 V	Through Hole	1	5000 V	36 V	3.3 V	10 W	0.79 "	1.24 in	20.1 mm	31.6 mm	10 mm	0.39 in	Remote On/Off	24-DIP Module, 8 Leads	83 %
aimtec AM10T-1205DNZ	ITE (Commercial)	Isolated Module		9 V	Through Hole	2	1.5 kV	18 V		10 W							Remote On/Off	24-DIP Module	83 %	85 °C	-40 °C				1 A	1 A	5 V	-5 V	-5 V		9 PC Pad
aimtec AM10T-4824SNZ	ITE (Commercial)	Isolated Module	416 mA	36 V	Through Hole	1	1.5 kV	75 V	24 V	10 W							Remote On/Off	24-DIP Module	88 %	85 °C	-40 °C										9 PC Pad
