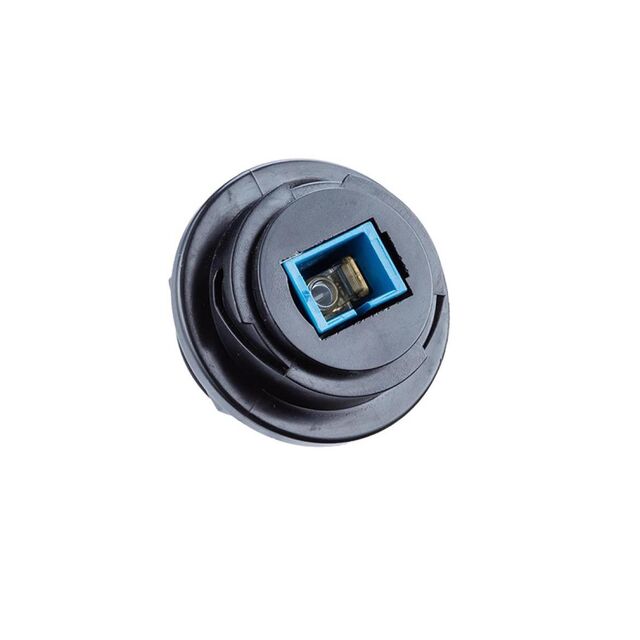

FB-SMRSFJ-TC7001
ActiveAmphenol LTW
CONN FBR OPTIC RCPT HSG FOR SC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FB-SMRSFJ-TC7001
ActiveAmphenol LTW
CONN FBR OPTIC RCPT HSG FOR SC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FB-SMRSFJ-TC7001 |
|---|---|
| Connector Type | Receptacle |
| Features | Circular Bayonet Coupling |
| For Use With/Related Products | SC Connectors |
| Housing Color | Black |
| Housing Material | Polyphenylene Oxide (PPO) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Simplex/Duplex | Simplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.02 | |
| 10 | $ 14.20 | |||
| 100 | $ 12.38 | |||
| 1000 | $ 9.69 | |||
Description
General part information
FB-SMRSFJ Series
Fiber Optic Connector Housing Receptacle For SC Connectors
