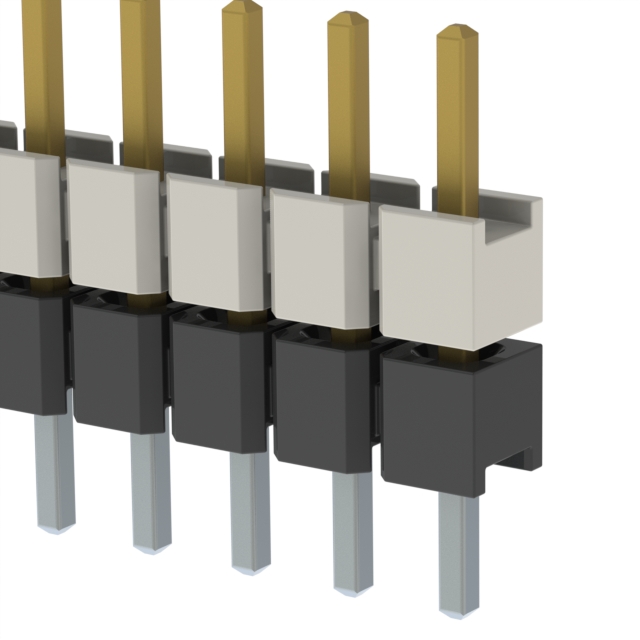

HW-16-08-L-S-205-118

Active

Samtec Inc.

CONN HDR 16POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 16POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Specification	HW-16-08-L-S-205-118

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	0.53 in
Length - Overall Pin	13.462 mm
Length - Post (Mating) [x]	0.207 in
Length - Post (Mating) [x]	5.258 mm
Length - Stack Height [x]	0.205 in
Length - Stack Height [x]	5.207 mm
Mounting Type	Through Hole
Number of Positions	16
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Pitch [x]	Pitch [x]	Number of Rows	Length - Tail	Length - Tail	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [z]	Length - Stack Height [z]	Termination	Length - Overall Pin	Length - Overall Pin	Color	Contact Finish - Post (Mating)	Number of Positions	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing [x]	Row Spacing	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. HW-16-08-T-S-264-133	2.54 mm	0.1 in	1	3.378 mm	0.133 "	Through Hole	3.378 mm	0.133 in	6.706 mm	0.264 in	Solder	0.53 in	13.462 mm	Black	Tin	16
Samtec Inc. HW-16-08-T-D-250-SM-A	2.54 mm	0.1 in	2			Surface Mount	5.791 mm	0.215 in			Solder	0.465 in	11.811 mm	Black	Tin		0.25 in	6.35 mm	0.1 in	2.54 mm
Samtec Inc. HW-16-08-T-S-310-SM-TR	2.54 mm	0.1 in	1			Surface Mount	3.937 mm	0.155 in			Solder	0.465 in	11.811 mm	Black	Tin	16	0.31 in	7.874 mm
Samtec Inc. HW-16-08-F-S-290-SM	2.54 mm	0.1 in	1			Surface Mount	4.445 mm	0.175 in			Solder	0.465 in	11.811 mm	Black	Gold	16	0.29 in	7.366 mm			3 Áin	0.076 Ám
Samtec Inc. HW-16-08-L-S-205-118	2.54 mm	0.1 in	1			Through Hole	5.258 mm	0.207 in			Solder	0.53 in	13.462 mm	Black	Gold	16	0.205 in	5.207 mm			10 Áin	0.25 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.97
