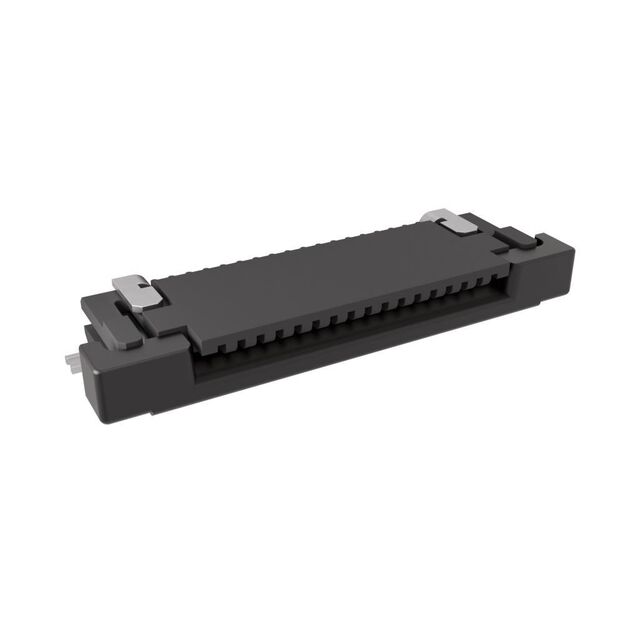

SFV17R-2STBE1HLF - SFV17R-2STBE1HLF

SFV17R-2STBE1HLF

Active
Amphenol ICC (FCI)

CONN FFC FPC TOP 17POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFV31R-2STBE1HLFSFV26R-1STBE5HLF+2
SFV17R-2STBE1HLF - SFV17R-2STBE1HLF

SFV17R-2STBE1HLF

Active
Amphenol ICC (FCI)

CONN FFC FPC TOP 17POS 0.5MM R/A

Deep-Dive with AI

DocumentsSFV31R-2STBE1HLFSFV26R-1STBE5HLF+2

Technical Specifications

Parameters and characteristics for this part

SpecificationSFV17R-2STBE1HLF
Actuator ColorBlack
Actuator MaterialPolyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End TypeTapered
Connector/Contact TypeContacts, Top
Contact FinishGold
Contact MaterialPhosphor Bronze
Current Rating (Amps)0.5 A
FFC, FCB Thickness0.33 mm
Flat Flex TypeFPC, FFC
Height Above Board1.8 mm
Height Above Board0.071 in
Housing ColorBlack
Housing MaterialGlass Filled, Halogen Free, Liquid Crystal Polymer (LCP)
Locking FeatureSlide Lock
Material Flammability RatingUL94 V-0
Mating Cycles20
Mounting TypeSurface Mount, Right Angle
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Pitch [x]0.5 mm
Pitch [x]0.02 in
TerminationSolder
Voltage Rating50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.68
10$ 0.52
25$ 0.46
50$ 0.43
100$ 0.40
250$ 0.36
500$ 0.33
1000$ 0.31
Digi-Reel® 1$ 0.68
10$ 0.52
25$ 0.46
50$ 0.43
100$ 0.40
250$ 0.36
500$ 0.33
1000$ 0.31
Tape & Reel (TR) 3000$ 0.27
6000$ 0.25
9000$ 0.24
15000$ 0.23
21000$ 0.23
30000$ 0.22

Description

General part information

SFV17R Series

17 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
