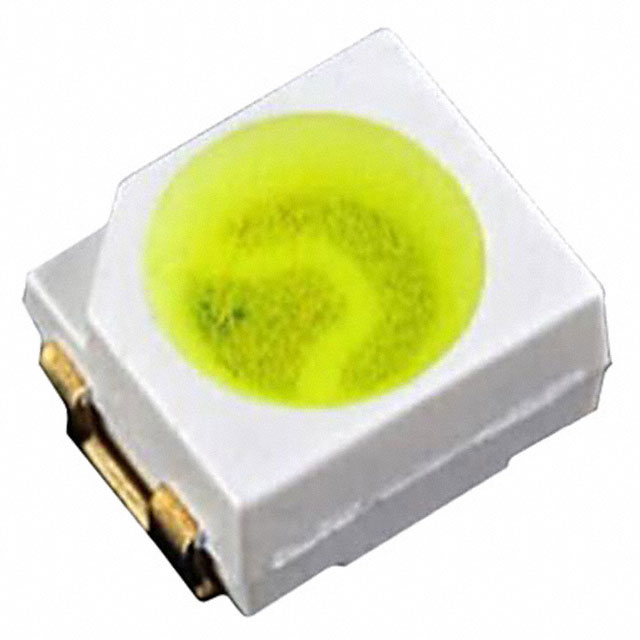

VSTW1154LCSE-3D3B3-TR

Active

Stanley Electric Co

LED BLUE-GREEN DIFF 2PLCC SMD

Search across all available documentation for this part.

Active

Stanley Electric Co

LED BLUE-GREEN DIFF 2PLCC SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED UNI-COLOR WHITE 2-PIN PLCC T/R

Part	Millicandela Rating	Lens Color	Lens Size [diameter]	Configuration	Lens Transparency	Height (Max) [Max] [z]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Color	Current - Test	Package / Case	Mounting Type
Stanley Electric Co VSTW1154LDS-E-TR	2000 mcd	Yellow	2.4 mm	Standard	Diffused	2.1 mm	2-PLCC	2.8 mm	3.2 mm	120 °	3.4 V	White	30 mA	2-PLCC	Surface Mount
Stanley Electric Co VSTW1154LCSE-3D3B3-TR	2000 mcd	Green	2.4 mm	Standard	Diffused	2.1 mm	2-PLCC	2.8 mm	3.2 mm	120 °	3.4 V	Blue-Green	30 mA	2-PLCC	Surface Mount
Stanley Electric Co VSTW1154LDSE-3D4K3-TR	2200 mcd	Yellow	2.4 mm	Standard	Diffused	2.1 mm	2-PLCC	2.8 mm	3.2 mm	120 °	3.4 V	White	30 mA	2-PLCC	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue-Green LED Indication - Discrete 3.4V 2-PLCC

Technical documentation and resources

No documents available
