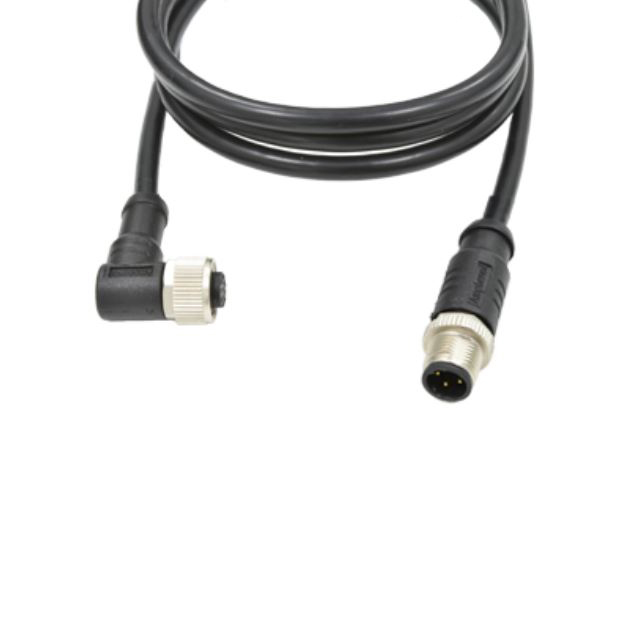

M12D04ML-12DFR-SDA05

Active

Amphenol LTW

CBL 4POS MALE TO FMALE 1.64'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M12D04ML-12DFR-SDA05

Active

Amphenol LTW

CBL 4POS MALE TO FMALE 1.64'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12D04ML-12DFR-SDA05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	D
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	D
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug, Right Angle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

M12D04ML Series

Part	2nd Connector Shell Size - Insert	1st Connector Type	1st Connector Mounting Type	2nd Connector Type	2nd Connector Gender	Assembly Configuration	Length [x]	Length [x]	2nd Connector Number of Positions Loaded	1st Connector Gender	2nd Connector Number of Positions	1st Connector Orientation	2nd Connector Mounting Type	1st Connector Number of Positions	Cable Type	2nd Connector Orientation	Shielding	Usage	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	Color	Ingress Protection	Cable Material
Amphenol LTW M12D04ML-12DFL-SB001	M12	Receptacle	Free Hanging (In-Line)	Plug	Female Sockets	Standard	1 m	3.28 ft	All	Male Pins	4	D	Free Hanging (In-Line)	4	Round	D	Unshielded	Industrial Environments	All	M12	Black	IP68 IP69K	Polyurethane (PUR)
Amphenol LTW M12D04ML-12DFL-SDA05	M12	Receptacle	Free Hanging (In-Line)	Plug	Female Sockets	Standard	500 mm	1.64 ft	All	Male Pins	4	D	Free Hanging (In-Line)	4	Round	D	Unshielded	Industrial Environments	All	M12	Black	IP68 IP69K	Polyvinyl Chloride (PVC)
Amphenol LTW M12D04ML-12DML-SB002	M12	Receptacle	Free Hanging (In-Line)	Receptacle		Standard	2 m	6.56 ft	All	Male Pins	4	D	Free Hanging (In-Line)	4	Round	D	Unshielded	Industrial Environments	All	M12	Black	IP68 IP69K	Polyurethane (PUR)
Amphenol LTW M12D04ML-12DML-SBA05	M12	Receptacle	Free Hanging (In-Line)	Receptacle		Standard	500 mm	1.64 ft	All	Male Pins	4	D	Free Hanging (In-Line)	4	Round	D	Unshielded	Industrial Environments	All	M12	Black	IP68 IP69K	Polyurethane (PUR)
Amphenol LTW M12D04ML-12DMR-SBA05	M12	Receptacle Right Angle	Free Hanging (In-Line)	Receptacle		Standard	500 mm	1.64 ft	All	Male Pins	4	D	Free Hanging (In-Line)	4	Round	D	Unshielded	Industrial Environments	All	M12	Black	IP68 IP69K	Polyurethane (PUR)
Amphenol LTW M12D04ML-12DFL-SB002	M12	Receptacle	Free Hanging (In-Line)	Plug	Female Sockets	Standard	2 m	6.56 ft	All	Male Pins	4	D	Free Hanging (In-Line)	4	Round	D	Unshielded	Industrial Environments	All	M12	Black	IP68 IP69K	Polyurethane (PUR)
Amphenol LTW M12D04ML-12DMR-SDA05	M12	Receptacle Right Angle	Free Hanging (In-Line)	Receptacle		Standard	500 mm	1.64 ft	All	Male Pins	4	D	Free Hanging (In-Line)	4	Round	D	Unshielded	Industrial Environments	All	M12	Black	IP68 IP69K	Polyvinyl Chloride (PVC)
Amphenol LTW M12D04ML-12DFL-SD001	M12	Receptacle	Free Hanging (In-Line)	Plug	Female Sockets	Standard	1 m	3.28 ft	All	Male Pins	4	D	Free Hanging (In-Line)	4	Round	D	Unshielded	Industrial Environments	All	M12	Black	IP68 IP69K	Polyvinyl Chloride (PVC)
Amphenol LTW M12D04ML-12DFR-SDA05	M12	Receptacle	Free Hanging (In-Line)	Plug Right Angle	Female Sockets	Standard	500 mm	1.64 ft	All	Male Pins	4	D	Free Hanging (In-Line)	4	Round	D	Unshielded	Industrial Environments	All	M12	Black	IP68 IP69K	Polyvinyl Chloride (PVC)
Amphenol LTW M12D04ML-12DML-SB001	M12	Receptacle	Free Hanging (In-Line)	Receptacle		Standard	1 m	3.28 ft	All	Male Pins	4	D	Free Hanging (In-Line)	4	Round	D	Unshielded	Industrial Environments	All	M12	Black	IP68 IP69K	Polyurethane (PUR)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.15
		10	$ 7.23
		25	$ 6.95
		50	$ 6.67
		100	$ 6.53

Description

General part information

M12D04ML Series

Cable Assembly 1.64' (500.00mm)
