ERN.00.250.GTL
ActiveLEMO
CONN NIMCAMAC RCPT STR 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
ERN.00.250.GTL
ActiveLEMO
CONN NIMCAMAC RCPT STR 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ERN.00.250.GTL | ERN.00.250 Series |
|---|---|---|
| Body Finish | - | Chrome, Nickel |
| Body Material | - | Brass |
| Center Contact Material | Bronze | Bronze |
| Center Contact Plating | Gold | Gold |
| Connector Style | NIM-CAMAC CD/N 549 | NIM-CAMAC CD/N 549 |
| Connector Type | Receptacle, Female Socket | Female Socket, Jack, Receptacle |
| Contact Termination | Solder Cup | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | Natural | Silver, Natural |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 | IP50 |
| Mating Cycles | 5000 | 5000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 250 °C | 250 - 260 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shield Termination | Solder | Solder |
| Voltage Rating | 700 VDC | 700 VDC |
ERN.00.250 Series
CONN NIMCAMA JCK STR 50OHM SOLDR
| Part | Connector Style | Center Contact Plating | Voltage Rating | Fastening Type | Body Finish | Includes | Contact Termination | Mating Cycles | Center Contact Material | Number of Ports | Shield Termination | Impedance | Mounting Feature | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Ingress Protection | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ERN.00.250.CTL | NIM-CAMAC CD/N 549 | Gold | 700 VDC | Push-Pull | Chrome | 1 Connector, 1 Lockwasher, 1 Nut | Solder Cup | 5000 | Bronze | 1 | Solder | 50 Ohms | Bulkhead - Rear Side Nut | Brass | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | IP50 | Female Socket, Jack | Silver |
LEMO ERN.00.250.GTL | NIM-CAMAC CD/N 549 | Gold | 700 VDC | Push-Pull | 1 Connector, 1 Lockwasher, 1 Nut | Solder Cup | 5000 | Bronze | 1 | Solder | 50 Ohms | Bulkhead - Rear Side Nut | -55 °C | 250 °C | Polytetrafluoroethylene (PTFE) | IP50 | Female Socket, Receptacle | Natural | ||
LEMO ERN.00.250.NTL | NIM-CAMAC CD/N 549 | Gold | 700 VDC | Push-Pull | Nickel | 1 Connector, 1 Lockwasher, 1 Nut | Solder Cup | 5000 | Bronze | 1 | Solder | 50 Ohms | Bulkhead - Rear Side Nut | Brass | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | IP50 | Female Socket, Receptacle | Silver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.70 | |
| 10 | $ 33.74 | |||
| 25 | $ 31.63 | |||
| 50 | $ 30.12 | |||
| 100 | $ 28.68 | |||
| 250 | $ 26.89 | |||
Description
General part information
ERN.00.250 Series

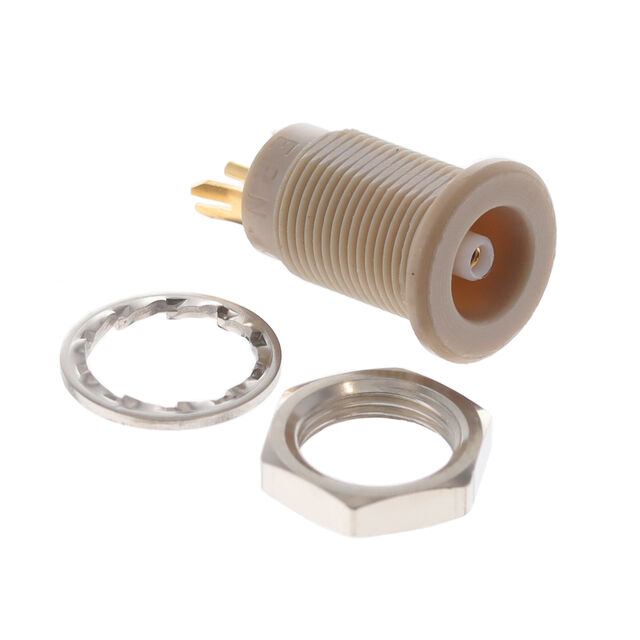

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
