EP-SGL-M25-GR-G

Active

TE Connectivity ENTRELEC

CABLE GLAND 13-18.01MM M25

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

CABLE GLAND 13-18.01MM M25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

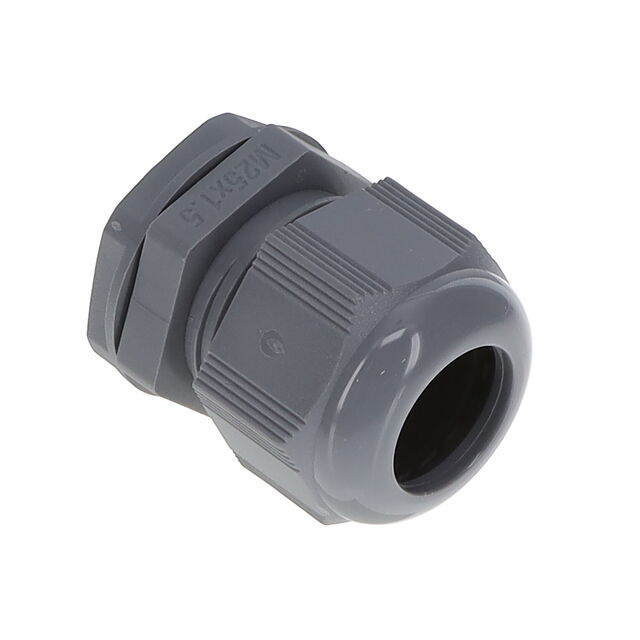

Cable Gland Polyamide (PA6), Nylon 6 M25x1.5 Gray

Technical documentation and resources

Specification	EP-SGL-M25-GR-G	EP-SGL-M25 Series

Color	Gray	Gray, Black
Includes	Seal	Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in	0.669 - 0.709 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm	16.99 - 18.01 mm
Outside Cable Diameter (Min)	13 mm	13 mm
Outside Cable Diameter (Min)	-	11 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in	0.433 - 0.512 in
Thread Length	10 mm	8 - 10 mm
Thread Length	0.394 in	0.315 - 0.394 in
Thread Size	M25x1.5	M25x1.5
Type	Cable Gland	Cable Gland

Part	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Includes	Thread Size	Outside Cable Diameter (Min)
TE Connectivity ENTRELEC EP-SGL-M25-GR-E	Gray	16.99 mm	0.669 in	100 °C	-20 C	Cable Gland	IP68 - Dust Tight, Waterproof	0.433 in	11 mm	8 mm	0.315 in	Seal	M25x1.5
TE Connectivity ENTRELEC EP-SGL-M25-GR-G	Gray	18.01 mm	0.709 in	100 °C	-20 C	Cable Gland	IP68 - Dust Tight, Waterproof	0.512 in		10 mm	0.394 in	Seal	M25x1.5	13 mm
TE Connectivity ENTRELEC EP-SGL-M25-BL-G	Black	18.01 mm	0.709 in	100 °C	-20 C	Cable Gland	IP68 - Dust Tight, Waterproof	0.512 in		10 mm	0.394 in	Seal	M25x1.5	13 mm
