TMCSILENTSTEPSTICK SPI
ActiveAnalog Devices Inc./Maxim Integrated

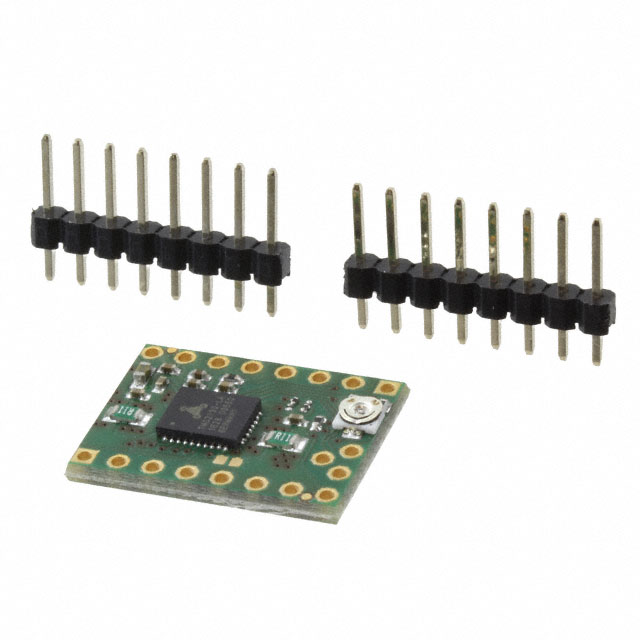

TMC2130 STEPPER DRIVER BOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMCSILENTSTEPSTICK SPI
ActiveAnalog Devices Inc./Maxim Integrated
TMC2130 STEPPER DRIVER BOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCSILENTSTEPSTICK SPI | TMC2130 Series |
|---|---|---|
| Applications | - | General Purpose |
| Contents | Board(s) | Board(s) |
| Current - Output | - | 1.2 - 1.4 A |
| Embedded | - | False, True |
| Embedded | - | MCU, 32-Bit |
| Function | - | Driver - Fully Integrated, Control and Power Stage |
| Interface | - | Step/Direction, SPI |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Half Bridge (4), Half Bridge (2) |
| Package / Case | - | 36-VFQFN Exposed Pad, 48-TQFP Exposed Pad |
| Step Resolution | - | 1 |
| Step Resolution | - | 0.00390625 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 36-QFN (5x6), 48-TQFP-EP (7x7) |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC2130 | TMC2130 |
| Voltage - Load | - | 46 V |
| Voltage - Load | - | 5.5 V |
| Voltage - Supply | - | 46 V |
| Voltage - Supply | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.28 | |
TMC2130 Series
IC MTR DRV BIPOLAR 5.5-46V 36QFN
| Part | Output Configuration | Voltage - Load [Max] | Voltage - Load [Min] | Technology | Current - Output | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Mounting Type | Motor Type - Stepper | Function | Step Resolution [Max] | Step Resolution [Min] | Interface | Applications | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | Type | Embedded | Utilized IC / Part | Supplied Contents | Contents | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC2130-LA-T | Half Bridge (4) | 46 V | 5.5 V | Power MOSFET | 1.2 A | -40 °C | 125 ¯C | 36-VFQFN Exposed Pad | Surface Mount | Bipolar | Driver - Fully Integrated, Control and Power Stage | 1 | 0.00390625 | SPI, Step/Direction | General Purpose | 36-QFN (5x6) | 46 V | 5.5 V | ||||||
Analog Devices Inc./Maxim Integrated TMC2130-EVAL | Power Management | TMC2130 | Board(s) | Board(s) | ||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2130-EVAL-KIT | Power Management | TMC2130 | Board(s) | Board(s) | 32-Bit, MCU | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2130-TA | Half Bridge (2) | 46 V | 5.5 V | Power MOSFET | 1.4 A | -40 °C | 125 ¯C | 48-TQFP Exposed Pad | Surface Mount | Bipolar | Driver - Fully Integrated, Control and Power Stage | 1 | 0.00390625 | SPI, Step/Direction | General Purpose | 48-TQFP-EP (7x7) | 46 V | 5.5 V | ||||||
Analog Devices Inc./Maxim Integrated TMC2130-LA | Half Bridge (2) | 46 V | 5.5 V | Power MOSFET | 1.2 A | -40 °C | 125 ¯C | 36-VFQFN Exposed Pad | Surface Mount | Bipolar | Driver - Fully Integrated, Control and Power Stage | 1 | 0.00390625 | SPI, Step/Direction | General Purpose | 36-QFN (5x6) | 46 V | 5.5 V | ||||||
Analog Devices Inc./Maxim Integrated TMC2130-TA-T | Half Bridge (4) | 46 V | 5.5 V | Power MOSFET | 1.4 A | -40 °C | 125 ¯C | 48-TQFP Exposed Pad | Surface Mount | Bipolar | Driver - Fully Integrated, Control and Power Stage | 1 | 0.00390625 | SPI, Step/Direction | General Purpose | 48-TQFP-EP (7x7) | 46 V | 5.5 V | ||||||
Analog Devices Inc./Maxim Integrated TMCSILENTSTEPSTICK SPI | Power Management | TMC2130 | Board(s) | Board(s) |
Description
General part information
TMC2130 Series
TMC2130 Motor Controller/Driver, Stepper Power Management Evaluation Board
Documents
Technical documentation and resources
