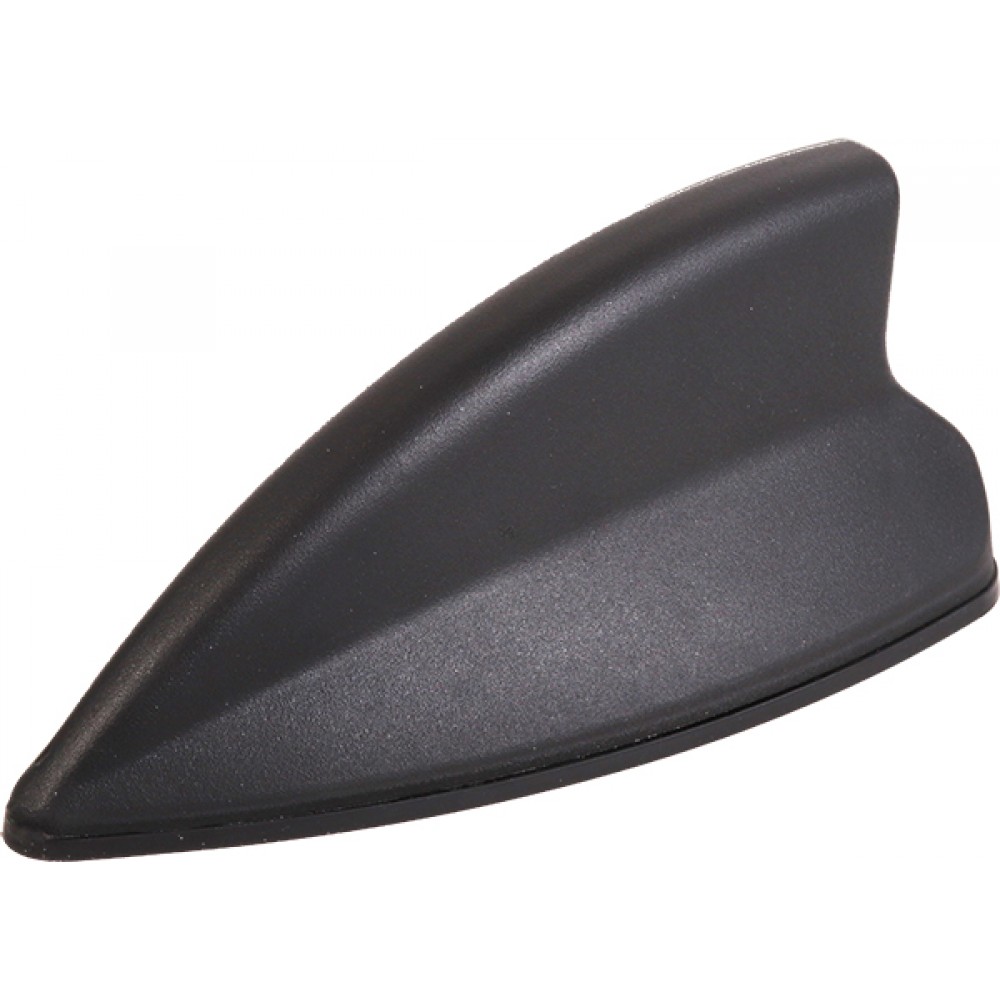

130002476

Active

Amphenol Procom

MULTI PURPOSE SHARK FIN 2X2 MIMO

Search across all available documentation for this part.

Active

Amphenol Procom

MULTI PURPOSE SHARK FIN 2X2 MIMO

Technical Specifications

Parameters and characteristics for this part

MULTI PURPOSE SHARK FIN 2X2 MIMO

Part	Frequency (Center/Band)	Gain	Number of Bands [custom]	Power - Max [Max]	Ingress Protection	Height (Max) [Max]	Height (Max) [Max]	VSWR	Frequency Group	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	RF Family/Standard	Applications
Amphenol Procom 130002476	1.584 GHz, 2.45 GHz, 2.755 GHz, 5.5 GHz, 788.5 MHz	4 dBi, 6 dB, 7 dBi	5	100 W	IP67	2.587 in	65.7 mm	2, 2.2	Wide Band	1.609 GHz, 2.5 GHz, 3.8 GHz, 6 GHz, 960 MHz	1.559 GHz, 1.71 GHz, 2.4 GHz, 5 GHz, 617 MHz	Module	Cellular	2G, 3G, 4G, 5G, GNSS, GPS, LTE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 2G, 3G, 4G, 5G, GNSS, GPS, LTE Module SMA Male Roof Mount

Technical documentation and resources

No documents available
