Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NC3030 2 | NC3030 Series |
|---|---|---|
| Actuator Diameter [diameter] | 0.422 in | 0.422 in |
| Actuator Diameter [diameter] | 10.72 mm | 10.72 mm |
| Color | Gray | Gray, Clear |
| Features | - | Shielded |
| For Use With/Related Products | Multiple Series | Multiple Series |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Material | Silicone Rubber | Silicone Rubber |
| Mounting Feature | Front of Panel | Front of Panel |
| Operating Temperature [Max] | 204 °C | 204 °C |
| Operating Temperature [Min] | -70 °C | -70 °C |
| Size / Dimension | - | 18.65 mm |
| Size / Dimension [z] | 0.719 in | 0.719 - 0.733 in |
| Size / Dimension [z] | 18.26 mm | 0.734 - 18.64 mm |
| Thread Size | 15/32-32 NS-2B | 15/32-32 NS-2B, 1/2-32 NS-2B, 7/16-28 UNEF-2B, M12x1 |
| Type | Pushbutton, Full Boot | Pushbutton, Full Boot |

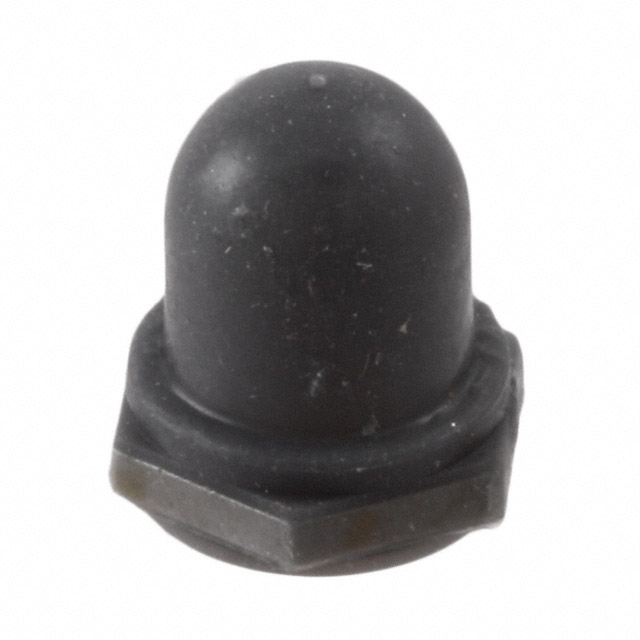

NC3030 Series
PUSHBUTTON FULL BOOT GRAY
| Part | Material | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [z] | Color | Type | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Ingress Protection | For Use With/Related Products | Mounting Feature | Thread Size | Size / Dimension [z] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APM HEXSEAL NC3030 2 | Silicone Rubber | 204 °C | -70 °C | 0.719 in | 18.26 mm | Gray | Pushbutton, Full Boot | 0.422 in | 10.72 mm | IP66/IP68 | Multiple Series | Front of Panel | 15/32-32 NS-2B | ||
APM HEXSEAL NC3030H 2 | Silicone Rubber | 204 °C | -70 °C | 0.734 in | Gray | Pushbutton, Full Boot | 0.422 in | 10.72 mm | IP66/IP68 | Multiple Series | Front of Panel | 1/2-32 NS-2B | 18.65 mm | ||
APM HEXSEAL NC3030 4 | Silicone Rubber | 204 °C | -70 °C | 0.719 in | 18.26 mm | Clear | Pushbutton, Full Boot | 0.422 in | 10.72 mm | IP66/IP68 | Multiple Series | Front of Panel | 15/32-32 NS-2B | ||
APM HEXSEAL NC3030 7/16-284 | Silicone Rubber | 204 °C | -70 °C | 0.719 in | 18.26 mm | Clear | Pushbutton, Full Boot | 0.422 in | 10.72 mm | IP66/IP68 | Multiple Series | Front of Panel | 7/16-28 UNEF-2B | ||
APM HEXSEAL NC3030H M12-1 2 | Silicone Rubber | 204 °C | -70 °C | 0.733 in | 18.64 mm | Gray | Pushbutton, Full Boot | 0.422 in | 10.72 mm | IP66/IP68 | Multiple Series | Front of Panel | M12x1 | ||
APM HEXSEAL NC3030 RFI 2 | Silicone Rubber | 204 °C | -70 °C | 0.719 in | 18.26 mm | Gray | Pushbutton, Full Boot | 0.422 in | 10.72 mm | IP66/IP68 | Multiple Series | Front of Panel | 15/32-32 NS-2B | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.93 | |
| 10 | $ 2.78 | |||
| 25 | $ 2.71 | |||
| 50 | $ 2.67 | |||
| 100 | $ 2.64 | |||
| 250 | $ 2.60 | |||
| 500 | $ 2.56 | |||
| 1000 | $ 2.16 | |||
Description
General part information
NC3030 Series
PUSHBUTTON FULL BOOT GRAY
