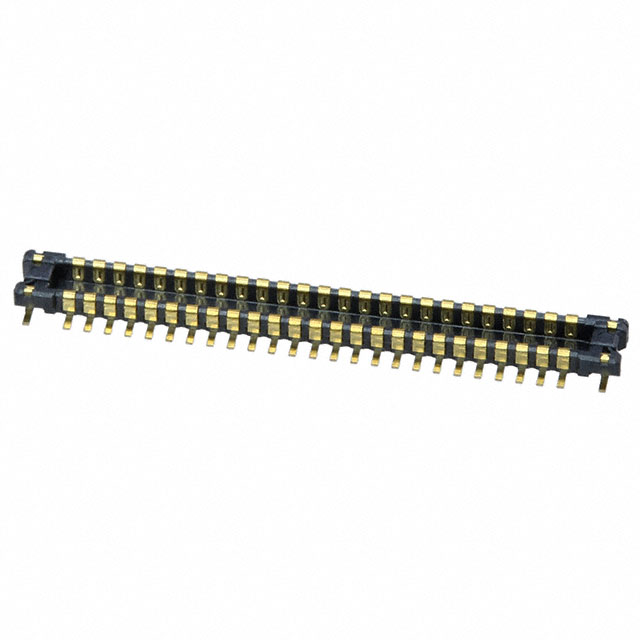

AXE250124A

Obsolete

Panasonic Electric Works

CONN HDR 50POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE250124A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.026 in
Height Above Board	0.65 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Mated Stacking Heights	Features	Connector Type	Number of Rows
Panasonic Electric Works AXE250124	Surface Mount	0.026 in	0.65 mm	0.016 in	0.4 mm	Gold	50	0.8 mm	Solder Retention	Header Outer Shroud Contacts	2
Panasonic Electric Works AXE250124A	Surface Mount	0.026 in	0.65 mm	0.016 in	0.4 mm	Gold	50	0.8 mm	Solder Retention	Header Outer Shroud Contacts	2
Panasonic Electric Works AXE250124D	Surface Mount	0.026 in	0.65 mm	0.016 in	0.4 mm	Gold	50	0.8 mm	Solder Retention	Header Outer Shroud Contacts	2
Panasonic Electric Works AXE250044D	Surface Mount	0.018 in	0.46 mm	0.016 in	0.4 mm	Gold	50	0.6 mm	Solder Retention	Header Outer Shroud Contacts	2
