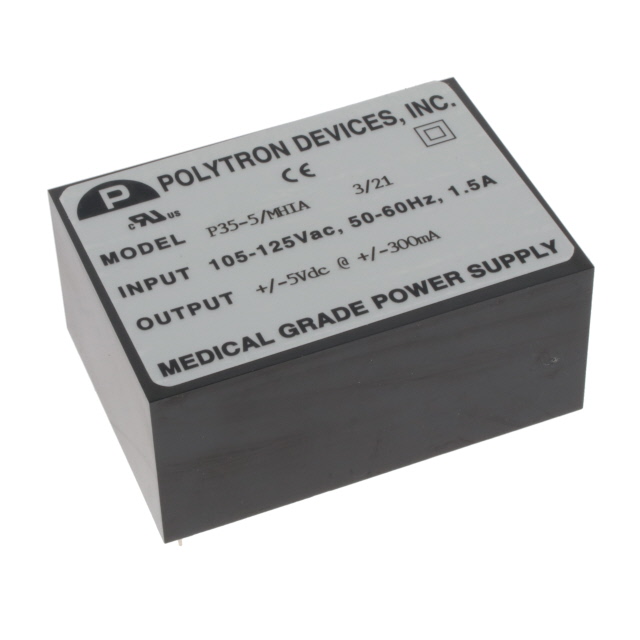

P35-5/MHIA
ActiveDaburn Electronics
AC/DC CONVERTER +/-5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P35-5/MHIA
ActiveDaburn Electronics
AC/DC CONVERTER +/-5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P35-5/MHIA |
|---|---|
| Applications | Medical |
| Approval Agency | CE, cURus |
| Current - Output (Max) | 300 mA |
| Line Regulation | 0.02 % |
| Load Regulation | 0.05 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 7-DIP Module, 5 Leads |
| Size / Dimension [x] | 3.5 in |
| Size / Dimension [x] | 88.9 mm |
| Size / Dimension [y] | 63.5 mm |
| Size / Dimension [y] | 2.5 in |
| Size / Dimension [z] | 1.56 in |
| Size / Dimension [z] | 39.6 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 125 VAC |
| Voltage - Input [Min] | 105 VAC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 152.39 | |
Description
General part information
P35-5 Series
Enclosed AC DC Converters 2 Output 5V 300mA, 300mA 105 ~ 125 VAC Input
