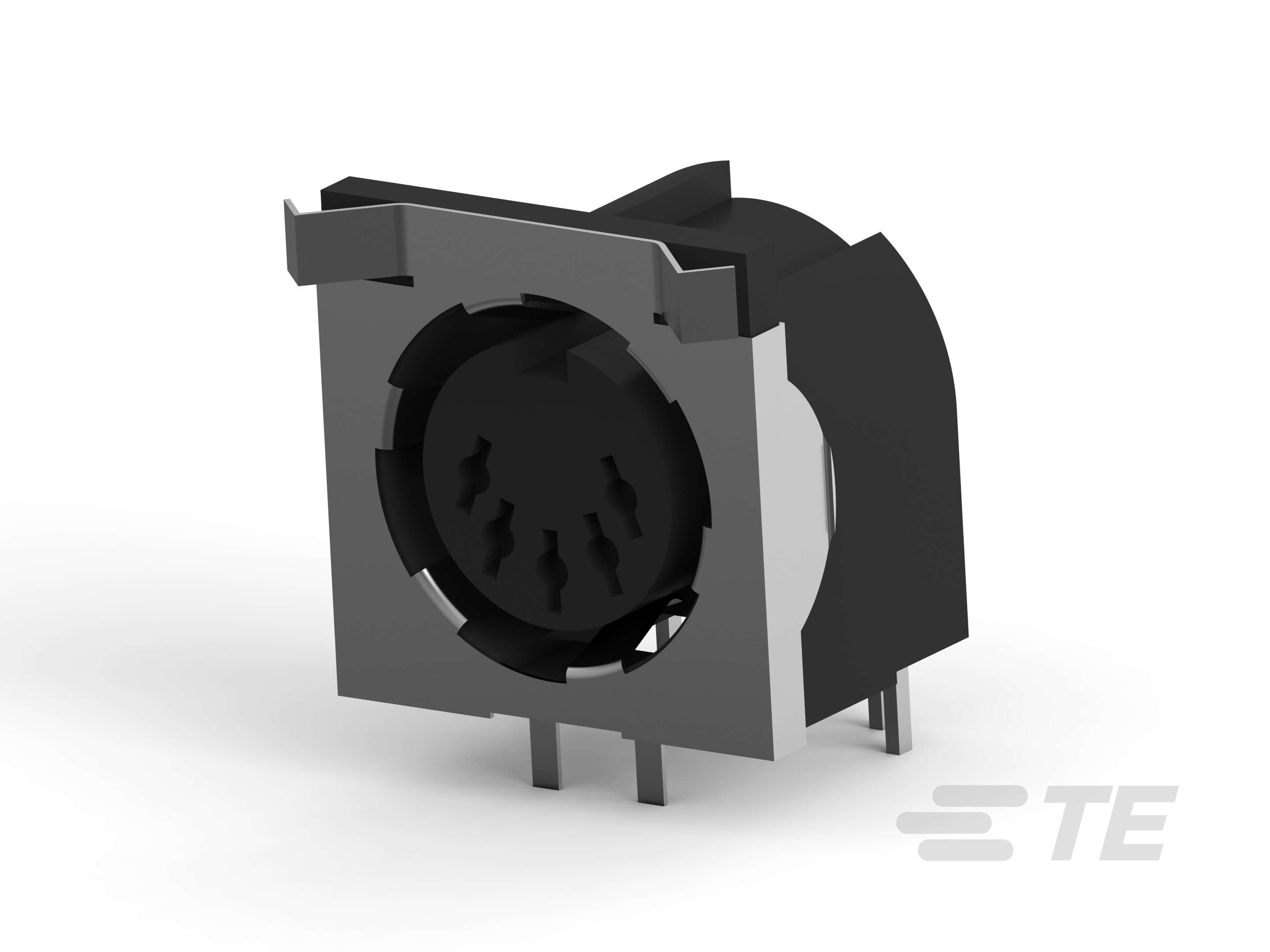

Specification	5750477-1

Applications	Audio
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100 µin
Contact Material	Brass
Current Rating	7.5 A
Fastening Type	Push-Pull
Insert Material	Polycarbonate, PC
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	5
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert	DIN (180 Degree)
Shielding	Shielded
Termination	Solder
Voltage Rating	250 V

5750477 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Applications	Insert Material	Fastening Type	Primary Material	Contact Finish - Mating	Number of Positions	Mounting Type	Contact Finish Thickness - Mating	Material Flammability Rating	Shielding	Orientation	Voltage Rating	Connector Type	Shell Material	Current Rating	Contact Material	Shell Size - Insert
TE Connectivity AMP Connectors 5750477-1	-55 °C	105 °C	Solder	Audio	PC Polycarbonate	Push-Pull	Plastic	Tin	5	Right Angle Through Hole	100 µin	UL94 V-0	Shielded	Keyed	250 V	Female Sockets Receptacle	Nylon Polyamide (PA)	7.5 A	Brass	DIN (180 Degree)
