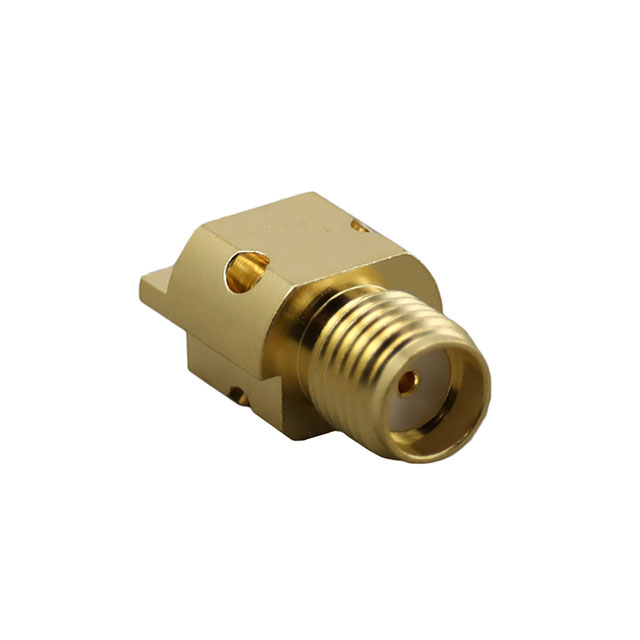

Specification	0732519780

Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Fastening Type	Threaded
Mounting Type	Board Edge, End Launch, Panel Mount
Number of Ports	1
Shield Termination	Solder

073251 Series

...

Part	Impedance	Fastening Type	Center Contact Material	Shield Termination	Cable Group	Housing Color	Mounting Type	Frequency - Max	Number of Ports	Connector Style	Contact Termination	Connector Type	Cable Group Diameter (Semi Rigid)	Includes Total Count	Includes	Voltage Rating	Center Contact Plating	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Mating Cycles	Body Finish	Mounting Feature	Ingress Protection Description	Ingress Protection IP Rating
Molex 0732512840	50 Ohm	Threaded	Beryllium Copper	Crimp	RG-316	Gold	Free Hanging (In-Line)	18 GHz	1	SMA	Crimp	Male Pin Plug
Molex 0732510552	50 Ohm	Threaded	Beryllium Copper	Solder	RG-402	Gold	Free Hanging (In-Line) Right Angle	18 GHz	1	SMA	Solder	Male Pin Plug	0.141 in	2 pcs	Connector End Cap	500 V	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Brass	500 cycles	Gold
Molex 0732512120	50 Ohm	Threaded	Beryllium Copper	Solder		Gold	Board Edge End Launch Panel Mount	18 GHz	1	SMA	Solder	Female Socket Jack				500 V	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Brass	500 cycles	Gold	Bulkhead Front Side Nut
Molex 0732510680	50 Ohm	Threaded	Brass	Solder		Gold	Board Edge End Launch	18 GHz	1	RP-SMA	Solder	Jack Male Pin				500 V	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Brass	500 cycles	Gold
Molex 0732516761		Threaded		Solder			Panel Mount Through Hole		1	SMA	Solder	Female Socket Jack												Bulkhead
Molex 0732512430	50 Ohm	Threaded	Brass	Solder	RG-405	Gold	Free Hanging (In-Line)	18 GHz	1	SMA	Solder	Male Pin Plug	0.085 in	2 pcs	Connector Contact	500 V	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Stainless Steel	500 cycles	Gold
Molex 0732512310	50 Ohm	Threaded	Beryllium Copper	Crimp	188 316 RG-174	Silver	Free Hanging (In-Line)	18 GHz	1	RP-SMA	Solder	Female Socket Plug
Molex 0732512940	50 Ohm	Threaded	Brass	Solder		Gold	Right Angle Through Hole	18 GHz	1	SMA	Solder	Male Pin Plug				500 V	Gold	Polytetrafluoroethylene (PTFE)			Brass		Gold
Molex 0732519691	50 Ohm									SMA		Female Socket Jack													Dust Tight Waterproof	IP67
Molex 0732512331	50 Ohm	Threaded	Brass	Solder		Gold	Through Hole	18 GHz	1	SMA	Solder	Female Socket Jack				500 V	Gold	Polytetrafluoroethylene (PTFE)			Brass		Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0732519780 | Datasheet
