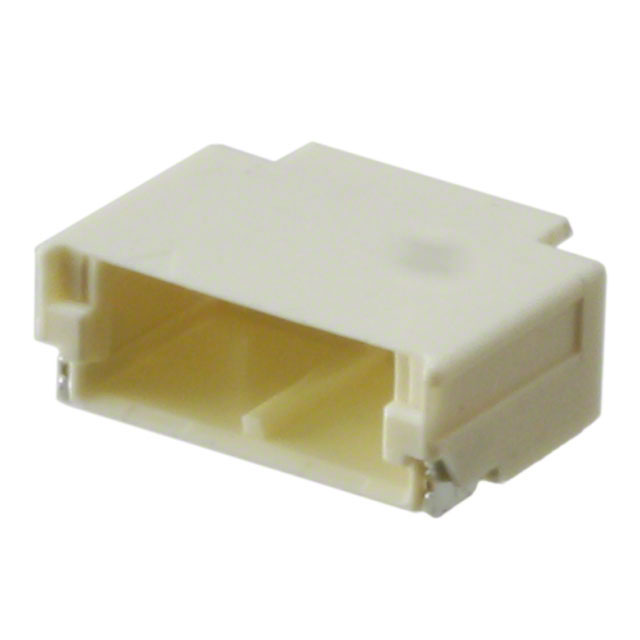

SM02B-LEASS-TF
ActiveJST Sales America Inc.
CONN SSL HDR 2POS 1.8MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
SM02B-LEASS-TF
ActiveJST Sales America Inc.
CONN SSL HDR 2POS 1.8MM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM02B-LEASS-TF |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Features | Solder Retention |
| Housing Color | White |
| Housing Material | Polyamide (PA9T), Nylon 9T |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.071 in |
| Pitch [x] | 1.8 mm |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.70 | |||
| 100 | $ 0.58 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.70 | |||
| 100 | $ 0.58 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.42 | |||
| Tape & Reel (TR) | 2000 | $ 0.40 | ||
| 4000 | $ 0.38 | |||
| 6000 | $ 0.37 | |||
| 10000 | $ 0.34 | |||
| 14000 | $ 0.34 | |||
Description
General part information
SM02B-LE Series
SSL Connector 2 Position Header, Male Pins Board to Cable/Wire 0.071" (1.80mm) Solder
