T4110011041-000
ActiveTE Connectivity AMP Connectors

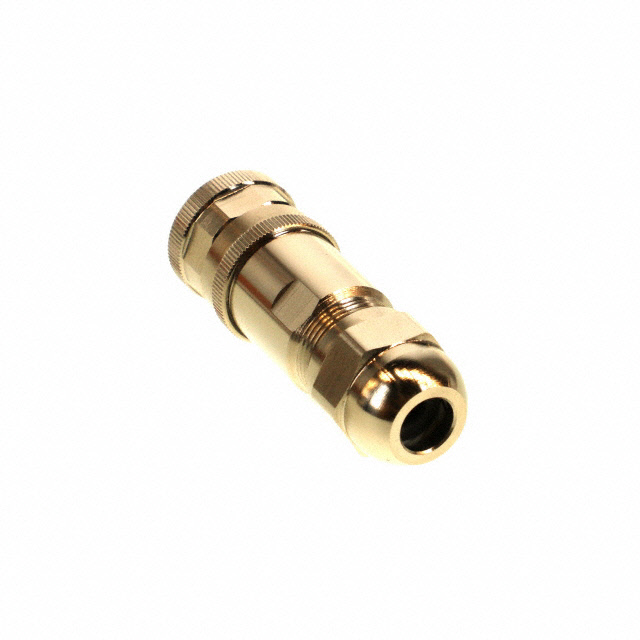

CONN PLUG FMALE 4POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
T4110011041-000
ActiveTE Connectivity AMP Connectors
CONN PLUG FMALE 4POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4110011041-000 | T41100 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Backshell Material, Plating | Nickel, Brass | Nickel, Brass, Glass Filled, Polybutylene Terephthalate (PBT) |
| Cable Opening | - | 8 mm |
| Cable Opening | - | 6 mm |
| Cable Opening | - | 0.315 in |
| Cable Opening | - | 0.236 in |
| Cable Opening [diameter] | 6 mm, 4 mm | 4 - 6 mm |
| Cable Opening [diameter] | 0.236 in, 0.157 in | 0.157 - 0.236 in |
| Color | Silver | Silver, Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold, Silver |
| Contact Finish Thickness - Mating | 3 µin | 3 - 80 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 - 2.03 µm |
| Contact Material | Zinc Alloy | Zinc Alloy, Bronze |
| Current Rating (Amps) | 4 A | 2 - 4 A |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 2 - 8 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | M12-4 | M12-4, M12-5, M12-3, M12-2, M12-8 |
| Shielding | Shielded | Shielded, Unshielded |
| Termination | Screw | Screw |
| Voltage Rating | 250 VDC | 30 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.35 | |
| 10 | $ 9.41 | |||
| 25 | $ 8.73 | |||
| 50 | $ 8.25 | |||
| 100 | $ 7.80 | |||
| 250 | $ 7.24 | |||
| 500 | $ 6.85 | |||
| 1000 | $ 6.48 | |||
T41100 Series
CONN PLUG FMALE 4POS GOLD SCREW
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Contact Finish - Mating | Features | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Shell Material | Number of Positions | Shell Finish | Primary Material | Current Rating (Amps) | Color | Backshell Material, Plating | Shielding | Shell Size - Insert | Orientation | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Voltage Rating | Termination | Applications | Contact Material | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4110012041-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | 8 mm | 6 mm | 0.315 in | 0.236 in | Brass | 4 | Nickel | Metal | 4 A | Silver | Brass, Nickel | Shielded | M12-4 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Zinc Alloy | ||
TE Connectivity AMP Connectors T4110002052-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Silver | Backshell, Coupling Nut | 8 mm | 6 mm | 0.315 in | 0.236 in | Brass | Nickel | Metal | 4 A | Black, Silver | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | M12-5 | A | Female Sockets, Plug | 80 µin | 2.03 µm | IP67 - Dust Tight, Waterproof | 60 VDC | Screw | Industrial | Bronze | |||
TE Connectivity AMP Connectors T4110011031-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | Brass | Nickel | Metal | 4 A | Silver | Brass, Nickel | Shielded | M12-3 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Zinc Alloy | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4110011041-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | Brass | 4 | Nickel | Metal | 4 A | Silver | Brass, Nickel | Shielded | M12-4 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Zinc Alloy | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4110012051-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | 8 mm | 6 mm | 0.315 in | 0.236 in | Brass | Nickel | Metal | 4 A | Silver | Brass, Nickel | Shielded | M12-5 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 60 VDC | Screw | Industrial | Zinc Alloy | |||
TE Connectivity AMP Connectors T4110001041-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | Brass | 4 | Nickel | Metal | 4 A | Black, Silver | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | M12-4 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Zinc Alloy | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4110002021-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | 8 mm | 6 mm | 0.315 in | 0.236 in | Brass | 2 | Nickel | Metal | 4 A | Black, Silver | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | M12-2 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Zinc Alloy | ||
TE Connectivity AMP Connectors T4110001051-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | Brass | Nickel | Metal | 4 A | Black, Silver | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | M12-5 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 60 VDC | Screw | Industrial | Bronze | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4110002042-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Silver | Backshell, Coupling Nut | 8 mm | 6 mm | 0.315 in | 0.236 in | Brass | 4 | Nickel | Metal | 4 A | Black, Silver | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | M12-4 | A | Female Sockets, Plug | 80 µin | 2.03 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Bronze | ||
TE Connectivity AMP Connectors T4110002041-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | 8 mm | 6 mm | 0.315 in | 0.236 in | Brass | 4 | Nickel | Metal | 4 A | Black, Silver | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | M12-4 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Zinc Alloy | ||
TE Connectivity AMP Connectors T4110002082-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Silver | Backshell, Coupling Nut | 8 mm | 6 mm | 0.315 in | 0.236 in | Brass | 8 | Nickel | Metal | 2 A | Black, Silver | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | M12-8 | A | Female Sockets, Plug | 80 µin | 2.03 µm | IP67 - Dust Tight, Waterproof | 30 VDC | Screw | Industrial | Bronze | ||
TE Connectivity AMP Connectors T4110001031-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | Brass | Nickel | Metal | 4 A | Black, Silver | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | M12-3 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Zinc Alloy | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4110011021-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | Brass | 2 | Nickel | Metal | 4 A | Silver | Brass, Nickel | Shielded | M12-2 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Zinc Alloy | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4110012031-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | 8 mm | 6 mm | 0.315 in | 0.236 in | Brass | Nickel | Metal | 4 A | Silver | Brass, Nickel | Shielded | M12-3 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Zinc Alloy | |||
TE Connectivity AMP Connectors T4110011081-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | Brass | 8 | Nickel | Metal | 2 A | Silver | Brass, Nickel | Shielded | M12-8 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 30 VDC | Screw | Industrial | Zinc Alloy | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4110002032-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Silver | Backshell, Coupling Nut | 8 mm | 6 mm | 0.315 in | 0.236 in | Brass | Nickel | Metal | 4 A | Black, Silver | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | M12-3 | A | Female Sockets, Plug | 80 µin | 2.03 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Bronze | |||
TE Connectivity AMP Connectors T4110012021-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | 8 mm | 6 mm | 0.315 in | 0.236 in | Brass | 2 | Nickel | Metal | 4 A | Silver | Brass, Nickel | Shielded | M12-2 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Industrial | Zinc Alloy | ||
TE Connectivity AMP Connectors T4110001081-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | Brass | 8 | Nickel | Metal | 2 A | Black, Silver | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | M12-8 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 30 VDC | Screw | Industrial | Zinc Alloy | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4110012081-000 | Free Hanging (In-Line) | 85 °C | -40 °C | Nylon, Polyamide (PA) | Gold | Backshell, Coupling Nut | 8 mm | 6 mm | 0.315 in | 0.236 in | Brass | 8 | Nickel | Metal | 2 A | Silver | Brass, Nickel | Shielded | M12-8 | A | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 30 VDC | Screw | Industrial | Zinc Alloy |
Description
General part information
T41100 Series
4 Position Circular Connector Plug, Female Sockets Screw
