00940419ZP
ActiveLITTELFUSE

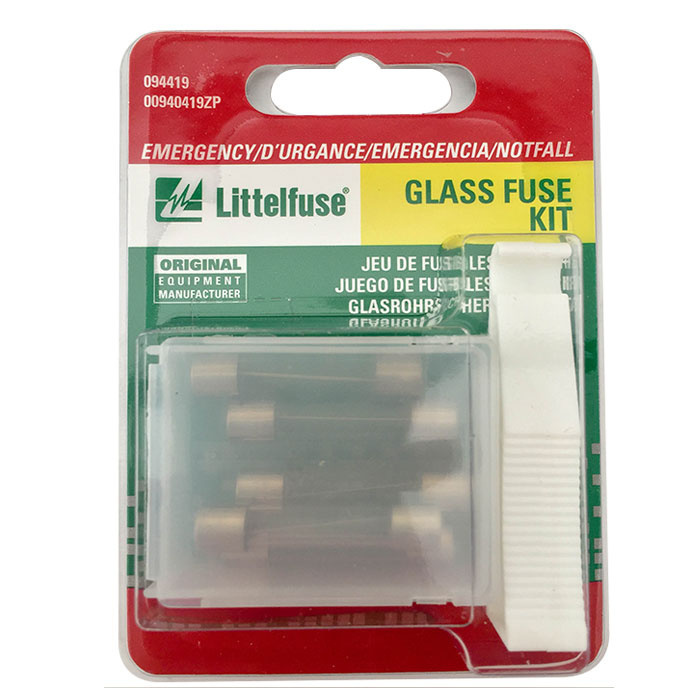

KIT EMERGENCY GLASS FUSE/ RETAIL
00940419ZP
ActiveLITTELFUSE
KIT EMERGENCY GLASS FUSE/ RETAIL
Description
General part information
094419 Series
Product information is currently not available for this series.
Technical Specifications
Parameters and characteristics for this part
| Specification | 00940419ZP |
|---|---|
| Current Rating (Maximum) | 30 A |
| Current Rating (Minimum) | 7.5 A |
| Includes | Fuse Puller |
| Kit Type | Cartridge, Glass |
| Mounting Type | Holder |
| Package Dimension (1/4" x 1-1/4") Height | 1.25 in |
| Package Dimension (1/4" x 1-1/4") Width | 0.25 in |
| Packages Included | 3AG, 3AB |
| Quantity | 5 |
| Quantity per Value | 1 Each |
| Quantity Values | 5 Values |
| Voltage Rating (AC) | 32 VAC |
| Voltage Rating (DC) | 32 VDC |
