790368-1

Obsolete

TE Connectivity AMP Connectors

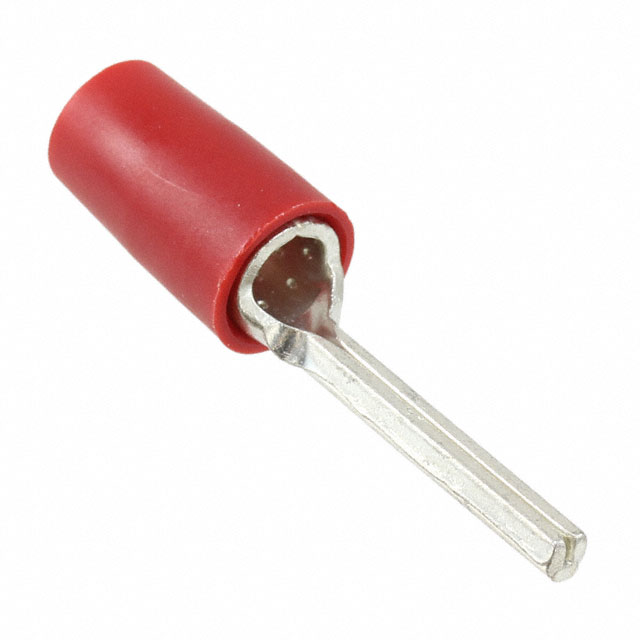

CONN WIRE PIN TERM 8AWG TERMINYL

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN WIRE PIN TERM 8AWG TERMINYL

Technical Specifications

Parameters and characteristics for this part

Specification	790368-1

Color	Red
Contact Finish	Tin
Contact Material	Copper
Insulation	Non-Insulated
Insulation Diameter [diameter]	6.6 mm
Insulation Diameter [diameter]	0.26 in
Length - Overall [x]	36.7 mm
Length - Overall [x]	1.445 in
Length - Pin [x]	0.709 in
Length - Pin [x]	18.01 mm
Material - Insulation	Nylon, Polyamide (PA)
Pin Diameter [diameter]	0.102 in
Pin Diameter [diameter]	2.6 mm
Termination	Crimp
Wire Gauge	8 AWG, 8 mm²

CONN WIRE PIN TERM 8AWG TERMINYL

Part	Color	Insulation	Length - Pin [x]	Length - Pin [x]	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Pin Diameter [diameter]	Pin Diameter [diameter]	Wire Gauge	Contact Finish	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Termination
TE Connectivity AMP Connectors 790368-1	Red	Non-Insulated	0.709 in	18.01 mm	Copper	6.6 mm	0.26 in	0.102 in	2.6 mm	8 AWG, 8 mm²	Tin	Nylon, Polyamide (PA)	36.7 mm	1.445 in	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Pin Terminal Connector 8 AWG (8.00mm²) Terminyl Crimp
