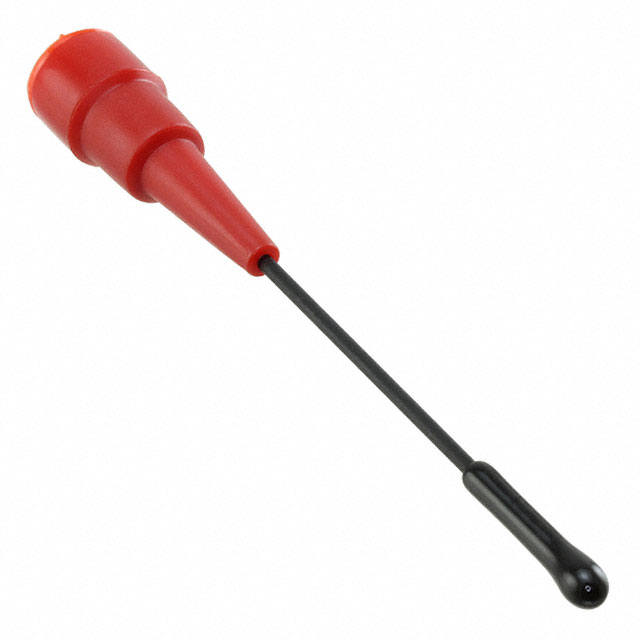

5682-2

Active

Pomona Electronics

TEST PLUGS & TEST JACKS TIP ADAPTER RED

Search across all available documentation for this part.

Active

Pomona Electronics

TEST PLUGS & TEST JACKS TIP ADAPTER RED

Technical Specifications

Parameters and characteristics for this part

Specification	5682-2

Color	Red
Connection Type	5548A Style Probes
Current Rating (Amps)	3 A
Length - Overall [x]	83.06 mm
Length - Overall [x]	3.27 in
Length - Tip [x]	2 in
Length - Tip [x]	50.8 mm
Material - Body	Nylon
Material - Tip	Stainless, Steel
Operating Temperature [custom]	122 °F
Operating Temperature [custom]	50 °C
Quantity	1 Box
Tip Type	2.03 mm
Tip Type	0.08 in
Tip Type	Standard Tip
Voltage Rating	300 VRMS/DC

Part	Operating Temperature [custom]	Operating Temperature [custom]	Connection Type	Material - Body	Material - Tip	Tip Type	Tip Type	Tip Type	Current Rating (Amps)	Quantity	Color	Length - Tip [x]	Length - Tip [x]	Voltage Rating	Length - Overall [x]	Length - Overall [x]
Pomona Electronics 5682-0	122 °F	50 °C	5548A Style Probes	Nylon	Stainless Steel	2.03 mm	0.08 in	Standard Tip	3 A	1 Box	Black	2 in	50.8 mm	300 VRMS/DC	83.06 mm	3.27 in
Pomona Electronics 5682-2	122 °F	50 °C	5548A Style Probes	Nylon	Stainless Steel	2.03 mm	0.08 in	Standard Tip	3 A	1 Box	Red	2 in	50.8 mm	300 VRMS/DC	83.06 mm	3.27 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 A Standard Tip, 0.080" (2.03mm) Dia Red
