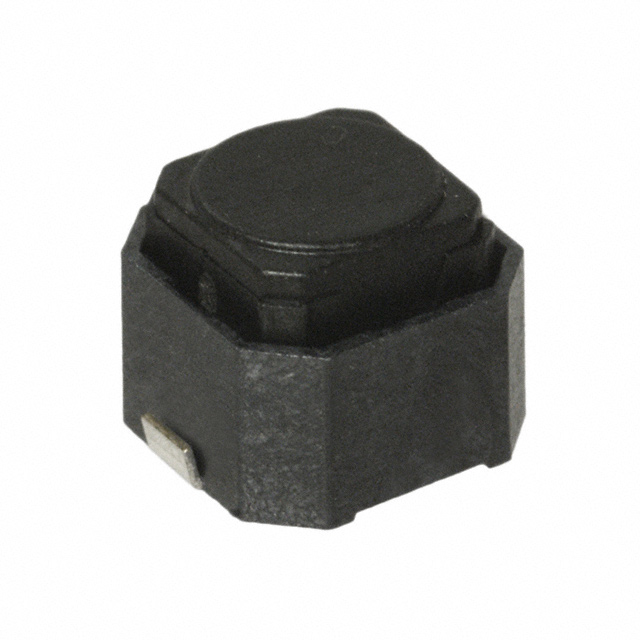

TL9210AF180Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL9210AF180Q	TL9210 Series

Actuator Height off PCB, Vertical	5 mm	5 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Round Button	Round Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	180 gf	180 - 260 gf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	6 mm	6 mm
Outline [y]	6 mm	6 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	1.3 mm	1.3 mm
Termination Style	J Lead	J Lead

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Function	Switch Travel	Mounting Type	Contact Rating @ Voltage	Termination Style	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Mechanical Life	Outline [y]	Outline [x]	Operating Force	Actuator Height off PCB, Vertical	Actuator Orientation	Actuator Type
E-Switch TL9210AF260Q	Off-Mom	1.3 mm	Surface Mount	0.05 A, 12 VDC	J Lead	Non-Illuminated	-20 C	70 °C	SPST-NO	100000 Cycles	6 mm	6 mm	260 gf	5 mm	Top Actuated	Round Button
E-Switch TL9210AF180Q	Off-Mom	1.3 mm	Surface Mount	0.05 A, 12 VDC	J Lead	Non-Illuminated	-20 C	70 °C	SPST-NO	100000 Cycles	6 mm	6 mm	180 gf	5 mm	Top Actuated	Round Button
