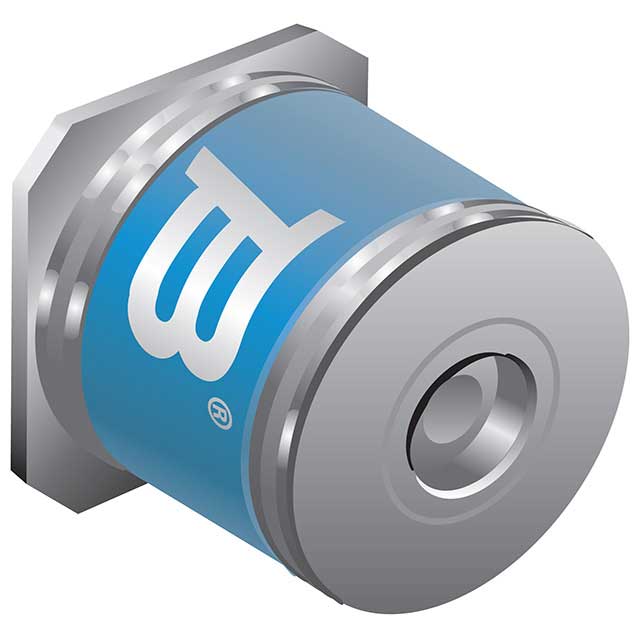

2029-42-SM-RPLF

Active

Bourns Inc.

GDT 420V 20KA 2 POLE SMD

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 420V 20KA 2 POLE SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	1000	$ 0.82

General part information

Gas Discharge Tube 420 V 20000A (20kA) ±20% 2 Pole Surface Mount

Technical documentation and resources

Specification	2029-42-SM-RPLF	2029 Series

Fail Short	False	False
Impulse Discharge Current (8/20µs)	20 kA	20 kA
Impulse Discharge Current (8/20µs)	20000 A	20000 A
Mounting Type	Surface Mount	Surface Mount
Number of Poles	2	2
Package / Case	2-SMD Cylinder Square End	2-SMD Cylinder Square End
Tolerance	20 %	20 %
Voltage - DC Spark Over (Nom)	420 V	90 - 420 V

Part	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Tolerance	Package / Case	Voltage - DC Spark Over (Nom)	Mounting Type	Number of Poles
Bourns Inc. 2029-09-SMLF	20 kA	20000 A	20 %	2-SMD Cylinder Square End	90 V	Surface Mount	2
Bourns Inc. 2029-35-SM-RPLF	20 kA	20000 A	20 %	2-SMD Cylinder Square End	350 V	Surface Mount	2
Bourns Inc. 2029-42-SMLF	20 kA	20000 A	20 %	2-SMD Cylinder Square End	420 V	Surface Mount	2
Bourns Inc. 2029-60-SM-RPLF				2-SMD Cylinder Square End		Surface Mount	2
Bourns Inc. 2029-09-SM-RPLF	20 kA	20000 A	20 %	2-SMD Cylinder Square End	90 V	Surface Mount	2
Bourns Inc. 2029-42-SM-RPLF	20 kA	20000 A	20 %	2-SMD Cylinder Square End	420 V	Surface Mount	2
Bourns Inc. 2029-23-SM-RPLF	20 kA	20000 A	20 %	2-SMD Cylinder Square End	230 V	Surface Mount	2
Bourns Inc. 2029-47-SMLF				2-SMD Cylinder Square End		Surface Mount	2
