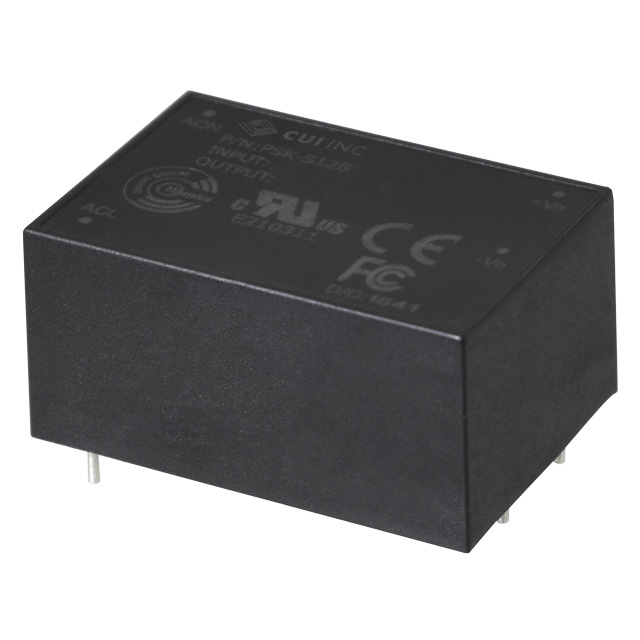

PSK-S12B-15

Active

CUI Inc.

AC/DC CONVERTER 15V 12W

Search across all available documentation for this part.

Active

CUI Inc.

AC/DC CONVERTER 15V 12W

Technical Specifications

Parameters and characteristics for this part

Specification	PSK-S12B-15

Applications	Household Appliances, ITE (Commercial)
Approval Agency	UL, IEC, FCC, EN, CB Scheme
Current - Output (Max) [Max]	800 mA
Efficiency	85 %
Features	Universal Input
Line Regulation	Ý1%
Load Regulation	Ý1%
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	4-DIP Module
Power (Watts)	12 W
Size / Dimension [x]	40.6 mm
Size / Dimension [x]	1.6 "
Size / Dimension [y]	27.9 mm
Size / Dimension [y]	1.1 in
Size / Dimension [z]	19.6 mm
Size / Dimension [z]	0.77 "
Standard Number	61000-3-2, 55024, 61000-6-4, 61000-6-3, 55032 Class A, 60950-1, 61000-3-3, 62368-1, 61204-3, 61000-6-1
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Output 1	15 V

Part	Power (Watts)	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Load Regulation	Mounting Type	Type	Package / Case	Voltage - Output 1	Applications	Features	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Line Regulation	Current - Output (Max) [Max]	Load Regulation	Line Regulation
CUI Inc. PSK-S12B-12	12 W	1	-40 °C	75 ¯C	85 %	1 %	Through Hole	Enclosed	4-DIP Module	12 V	Household Appliances ITE (Commercial)	Universal Input	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1	264 VAC 370 VDC	90 VAC 120 VDC	CB Scheme EN FCC IEC UL	27.9 mm	19.6 mm	40.6 mm	1.6 "	0.77 "	1.1 in	1 %	1 A
CUI Inc. PSK-S12B-5	10 W	1	-40 °C	75 ¯C	80 %	1 %	Through Hole	Enclosed	4-DIP Module	5 V	Household Appliances ITE (Commercial)	Universal Input	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1	264 VAC 370 VDC	90 VAC 120 VDC	CB Scheme EN FCC IEC UL	27.9 mm	19.6 mm	40.6 mm	1.6 "	0.77 "	1.1 in	1 %	2 A
CUI Inc. PSK-S12B-15	12 W	1	-40 °C	75 ¯C	85 %		Through Hole	Enclosed	4-DIP Module	15 V	Household Appliances ITE (Commercial)	Universal Input	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1	264 VAC 370 VDC	90 VAC 120 VDC	CB Scheme EN FCC IEC UL	27.9 mm	19.6 mm	40.6 mm	1.6 "	0.77 "	1.1 in		800 mA	Ý1%	Ý1%

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	68	$ 16.91

General part information

Enclosed AC DC Converters 1 Output 15V 800mA 90 ~ 264 VAC, 120 ~ 370 VDC Input
