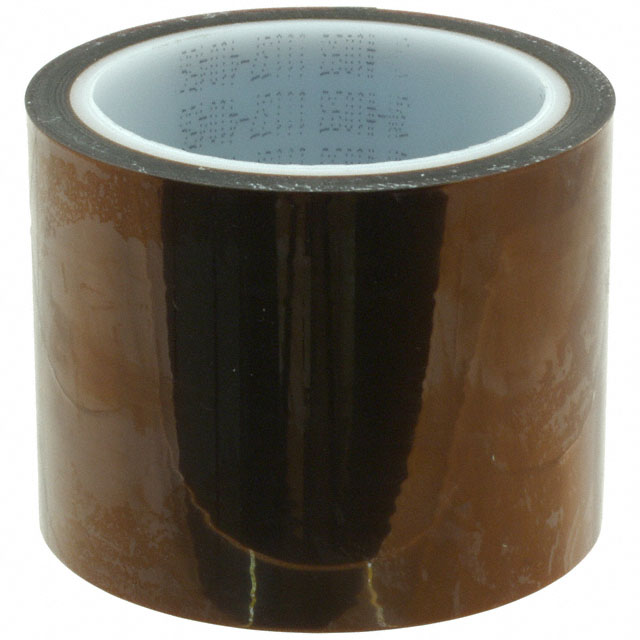

3M1093-3X36YD

Obsolete

3M (TC)

TAPE ELECTRICAL AMBER 3"X36YDS

Search across all available documentation for this part.

Obsolete

3M (TC)

TAPE ELECTRICAL AMBER 3"X36YDS

Technical Specifications

Parameters and characteristics for this part

Part	Tape Type	Adhesive	Backing, Carrier [custom]	Backing, Carrier [custom]	Width [x]	Width [x]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Usage	Length	Length	Length	Temperature Range	Temperature Range	Color	Thickness	Thickness	Thickness	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [y]	Width [y]
3M (TC) 3M1093-1X36YD	Electrical	Silicone Thermosetting	Polyimide Film	Polyimide Film	25.4 mm	1 in	1 mils	0.025 mm	0.001 "	Masking High Temperature	36 yd	32.9 m	108 ft	180 °C	356 °F	Amber	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm
3M (TC) 3M1093-2X36YD	Electrical	Silicone Thermosetting	Polyimide Film	Polyimide Film			1 mils	0.025 mm	0.001 "	Masking High Temperature	36 yd	32.9 m	108 ft	180 °C	356 °F	Amber	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	2 "	50.8 mm
3M (TC) 3M1093-3X36YD	Electrical	Silicone Thermosetting	Polyimide Film	Polyimide Film	76.2 mm	3 in	1 mils	0.025 mm	0.001 "	Masking High Temperature	36 yd	32.9 m	108 ft	180 °C	356 °F	Amber	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Electrical Tape Silicone Thermosetting Adhesive Amber 3.00" (76.20mm) X 108' (32.9m) 36 yds

Technical documentation and resources
