Q-2F01E0008.25M

Active

Amphenol Custom Cable

COAX CBL MCX TO N-TYPE 9.8"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL MCX TO N-TYPE 9.8"

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector Mounting Type	2nd Connector	1st Connector Mounting Type	2nd Contact Gender	Features	Overall Impedance	1st Contact Gender	Color	Style	1st Connector	Cable Type	Frequency - Max [Max]	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2F01E00082.5M	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	Male	Shielded	50 Ohms	Male	Black	MCX to N-Type	MCX Plug	RG-58	6000 MHz	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-2F01E0008002M	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	Male	Shielded	50 Ohms	Male	Black	MCX to N-Type	MCX Plug	RG-58	6000 MHz	6.6 ft	78.7 in	2 m
Amphenol Custom Cable Q-2F01E0008.25M	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	Male	Shielded	50 Ohms	Male	Black	MCX to N-Type	MCX Plug	RG-58	6000 MHz				9.843 "	250 mm
Amphenol Custom Cable Q-2F01E0008060i	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	Male	Shielded	50 Ohms	Male	Black	MCX to N-Type	MCX Plug	RG-58	6000 MHz	5 ft	5 '	1.5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

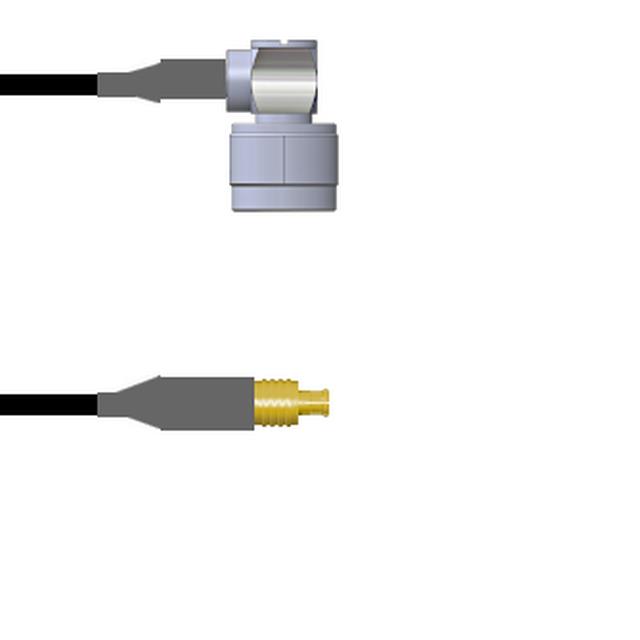

Cable Assembly Coaxial MCX to N-Type RG-58 9.843" (250.00mm)

Technical documentation and resources

No documents available
