11-4S-P

Active

CONN RING CIRC 18-22AWG #4 CRIMP

Search across all available documentation for this part.

Active

CONN RING CIRC 18-22AWG #4 CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

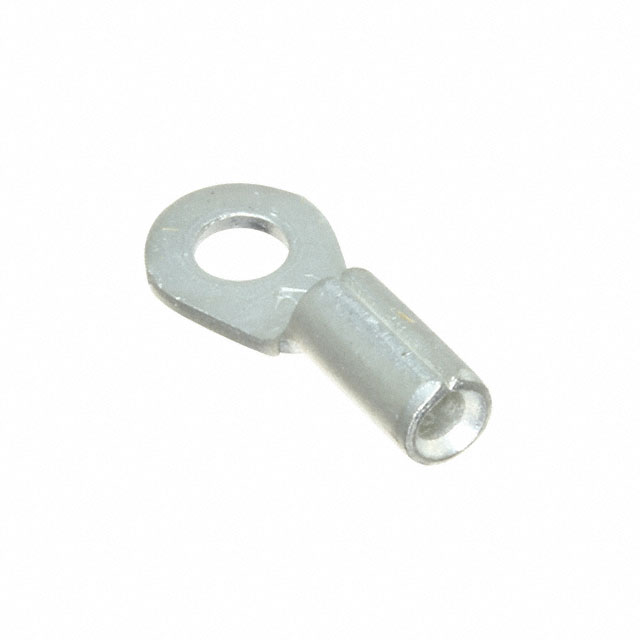

Ring Terminal Connector 4 Stud Circular 18-22 AWG Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	11-4S-P	11-4 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	Copper, ETP
Features	Butted Seam	Butted Seam, Brazed Seam
Insulation	Insulated	Insulated, Non-Insulated
Insulation Diameter	3.68 mm	3.68 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Overall [x]	20.32 mm	15.24 - 20.32 mm
Length - Overall [x]	0.8 in	0.6 - 0.8 in
Material - Insulation	Vinyl	Nylon, Polyamide (PA), Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	4 Stud	4 Stud
Terminal Type	Circular	Circular
Termination	Crimp	Crimp
Thickness	0.03 in	0.03 in
Thickness	0.76 mm	0.76 mm
Width - Outer Edges [y]	0.25 "	0.25 "
Width - Outer Edges [y]	6.35 mm	6.35 mm
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

22-18 AWG NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMIN

Part	Length - Overall [x]	Length - Overall [x]	Thickness	Thickness	Insulation Diameter	Insulation Diameter [diameter]	Termination	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Features	Material - Insulation	Color	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Insulation	Contact Finish	Contact Material
3M 11-4S-NB	20.07 mm	0.79 in	0.03 in	0.76 mm	3.68 mm	0.145 "	Crimp	4 Stud	22 AWG	17.5 AWG	Butted Seam	Nylon, Polyamide (PA)	Red	Free Hanging (In-Line)	0.25 "	6.35 mm	Circular	Insulated
3M 11-4S-W	15.24 mm	0.6 in	0.03 in	0.76 mm			Crimp	4 Stud	22 AWG	17.5 AWG	Brazed Seam			Free Hanging (In-Line)	0.25 "	6.35 mm	Circular	Non-Insulated	Tin	Copper
3M 11-4S-P	20.32 mm	0.8 in	0.03 in	0.76 mm	3.68 mm	0.145 "	Crimp	4 Stud	22 AWG	17.5 AWG	Butted Seam	Vinyl	Red	Free Hanging (In-Line)	0.25 "	6.35 mm	Circular	Insulated	Tin	Copper, ETP
3M 11-4S	15.24 mm	0.6 in	0.03 in	0.76 mm			Crimp	4 Stud	22 AWG	17.5 AWG	Butted Seam			Free Hanging (In-Line)	0.25 "	6.35 mm	Circular	Non-Insulated	Tin	Copper, ETP
