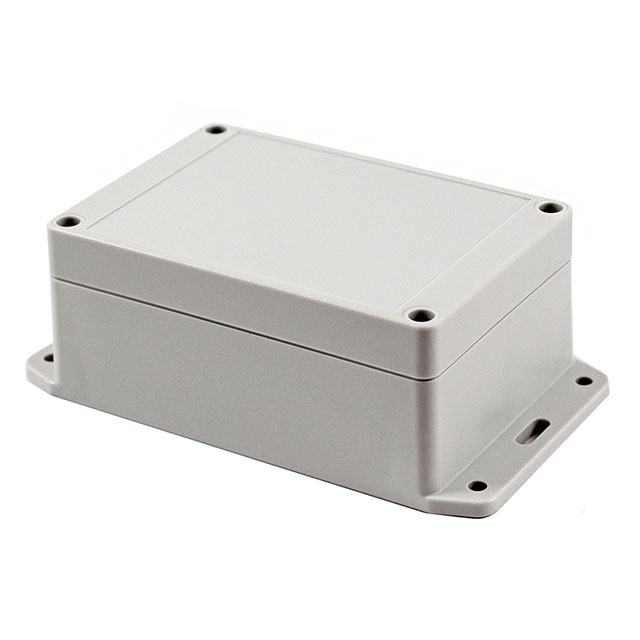

Specification	RP1130BF

Area (L x W)	21.3 in²
Color	Off, White
Container Type	Box
Design	Cover Included
Height	2.07 in
Material	Polycarbonate
Material Flammability Rating	UL94 V-2
Size / Dimension Length	6.14 in
Size / Dimension Width	3.45 in
Thickness	0.08 in

RP Series

Part	Area (L x W)	Container Type	Size / Dimension Width	Size / Dimension Length	Design	Thickness	Color	Material Flammability Rating	Height	Material	Features
Hammond Manufacturing RP1170BFC	26.7 in²	Box	3.47 in	7.68 in	Cover Included	0.08 in	Clear Cover/Door Off White	UL94 V-2	2.17 in	ABS
Hammond Manufacturing RP1380	42.4 in²	Box	5.787 in	7.35 in	Cover Included	0.118 in	Off White	UL94 HB	4.331 in	Polycarbonate	PCB Supports Watertight
Hammond Manufacturing RP1140C	16.7 in²	Box	3.39 in	4.94 in	Cover Included	0.08 in	Clear Cover/Door Off White	UL94 V-2	2.76 in	Polycarbonate
Hammond Manufacturing RP1210BF	29.1 in²	Box	4.24 in	6.89 in	Cover Included	0.08 in	Off White	UL94 V-2	2.56 in	Polycarbonate Polycarbonate (PC)
Hammond Manufacturing RP1210BFC	29.1 in²	Box	4.24 in	6.89 in	Cover Included	0.08 in	Clear Cover/Door Off White	UL94 V-2	2.56 in	Polycarbonate
Hammond Manufacturing RP1465	56.3 in²	Box	6.495 in	8.661 in	Cover Included	0.138 in	Gray	UL94 HB	3.343 in	ABS	PCB Supports Watertight
Hammond Manufacturing RP1375BFC	50.8 in²	Box	5.87 in	8.66 in	Cover Included	0.08 in	Clear Cover/Door Gray	UL94 HB	3.54 in	ABS
Hammond Manufacturing RP1170C	22.3 in²	Box	3.41 in	6.54 in	Cover Included	0.08 in	Clear Cover/Door Off White	UL94 V-2	1.57 in	ABS
Hammond Manufacturing RP1015C	6.14 in²	Box	2.38 in	2.58 in	Cover Included	0.08 in	Clear Cover/Door Gray	UL94 HB	1.1 in	ABS Polycarbonate
Hammond Manufacturing RP1630	80.3 in²	Box	8.03 in	10 in	Cover Included	0.08 in	Off White	UL94 V-2	5.12 in	Polycarbonate
