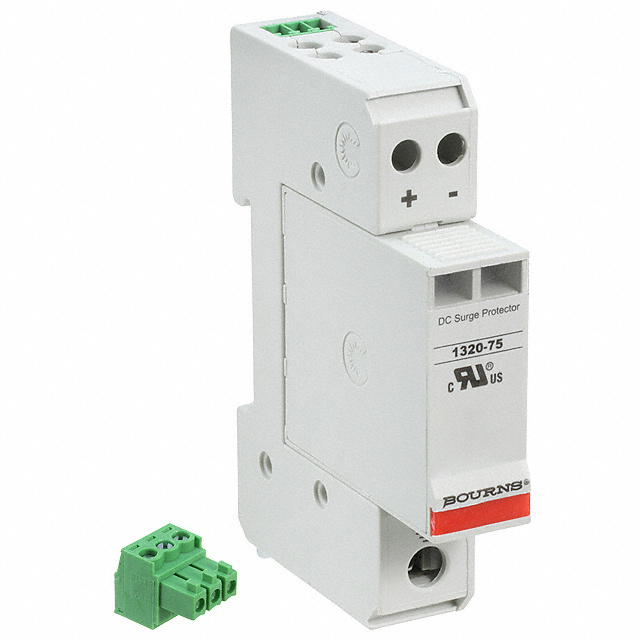

1320-S-75

Active

Bourns Inc.

SPD TYPE 2/TYPE 4 100VDC MCOV

Search across all available documentation for this part.

Active

Bourns Inc.

SPD TYPE 2/TYPE 4 100VDC MCOV

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1320-S-75	1320 Series

Approval Agency	CSA, UR, CE	CSA, UR, CE
Current - Discharge (Max) (8/20µS)	40 kA	40 kA
Current - Discharge (Max) (8/20µS)	-	30 kA
Current - Discharge (Nom) (8/20µS)	20 kA	15 - 20 kA
Features	Remote Signaling Contacts	Remote Signaling Contacts
Form	Base + Module	Base + Module
Mounting Type	DIN Rail	DIN Rail
Number of Poles	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Type	Type 4, Type 2	Type 4, Type 2
Voltage - Continuous Operating (Max) (MCOV) [Max]	100 VDC	65 - 100 VDC
Voltage - Protection Level (VP) (2416)	390 V	300 - 390 V

SURGE PROTECTOR, DIN RAIL, MAINS SURGE PROTECTOR, 2 POLE, TYPE 2 & 4, 30 KA, 65 VDC, DIN RAIL

Part	Approval Agency	Form	Type	Voltage - Protection Level (VP) (2416)	Mounting Type	Features	Current - Discharge (Max) (8/20µS) [Max]	Number of Poles	Voltage - Continuous Operating (Max) (MCOV) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Discharge (Nom) (8/20µS)	Current - Discharge (Max) (8/20µS)
Bourns Inc. 1320-S-48	CE, CSA, UR	Base + Module	Type 2, Type 4	300 V	DIN Rail	Remote Signaling Contacts	30 kA	2	65 VDC	85 °C	-40 °C	15 kA
Bourns Inc. 1320-S-75	CE, CSA, UR	Base + Module	Type 2, Type 4	390 V	DIN Rail	Remote Signaling Contacts		2	100 VDC	85 °C	-40 °C	20 kA	40 kA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 85.23

General part information

SPD TYPE 2/TYPE 4 100VDC MCOV
