61198-4
ObsoleteTE Connectivity AMP Connectors
CONN QC RCPT 10-12AWG 0.250
61198-4
ObsoleteTE Connectivity AMP Connectors
CONN QC RCPT 10-12AWG 0.250
Description
General part information
61198 Series

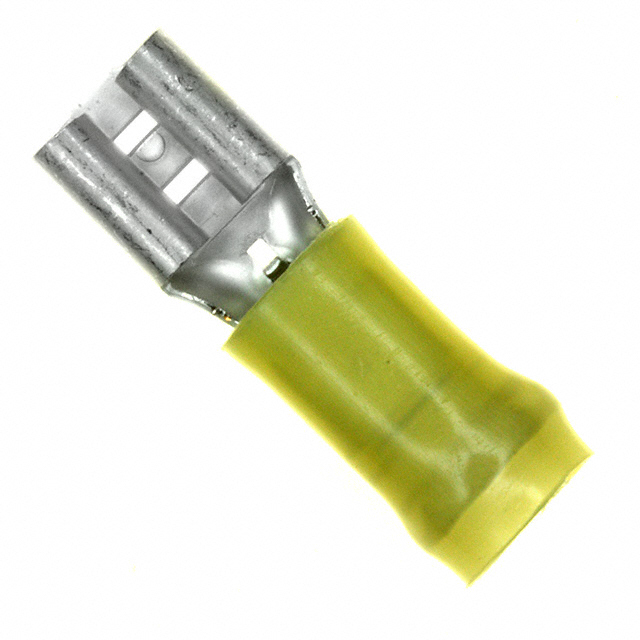

0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Non-Mating End Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 61198-4 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Insulation | Non-Mating End Insulated |
| Insulation Diameter | 0.25 in |
| Length - Overall | 1.012 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.305 in |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
