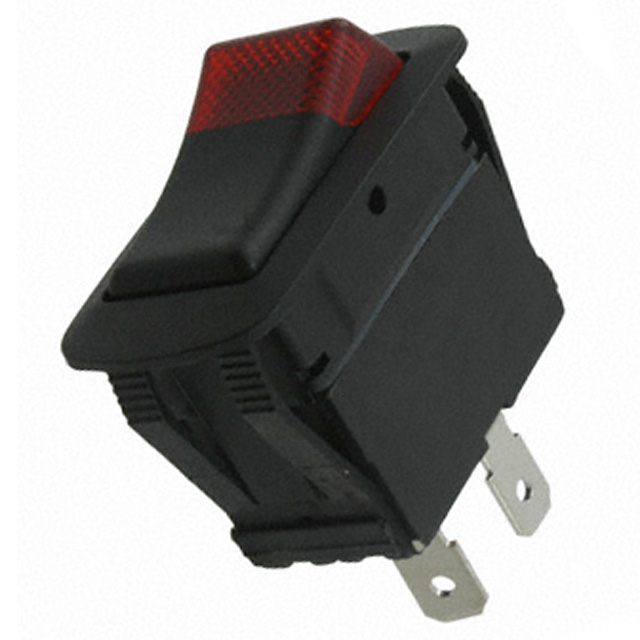

Specification	GRB260A401BBRN2

Actuator Marking	No Marking
Actuator Type	Concave (Curved), Illuminated
Approval Agency	cULus, ENEC
Circuit	SPST
Color	Red
Color - Actuator/Cap	Black
Current Rating	21 A, 20 A
Illumination Type	Neon
Illumination Voltage (Nominal)	250 V
Ingress Protection Description	Water Resistant, Dust Protected
Ingress Protection IP Rating	IP56
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Length	36.6 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	21.2 mm
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Off
Termination Style	Quick Connect
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

GRB260A Series

Part	Mechanical Life (Cycles)	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Operating Temperature (Max)	Operating Temperature (Min)	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Approval Agency	Quick Connect Size (0.250")	Termination Style	Actuator Marking	Mounting Type	Circuit	Color - Actuator/Cap	Current Rating	Actuator Type	Ingress Protection IP Rating	Ingress Protection Description	Illumination Type	Color	Illumination Voltage (Nominal)
CW Industries GRB260A101BBNN	100000 Cycles	21.2 mm	Rectangular	36.6 mm	85 °C	-20 °C	On-Off	14 V	125 V	cULus ENEC	0.25 in	Quick Connect	No Marking	Panel Mount Snap-In	SPST	Black	20 A 21 A	Concave (Curved)	IP56	Dust Protected Water Resistant
CW Industries GRB260A401BBRN2	100000 Cycles	21.2 mm	Rectangular	36.6 mm	85 °C	-20 °C	On-Off	14 V	125 V	cULus ENEC	0.25 in	Quick Connect	No Marking	Panel Mount Snap-In	SPST	Black	20 A 21 A	Concave (Curved) Illuminated	IP56	Dust Protected Water Resistant	Neon	Red	250 V
CW Industries GRB260A601BBNN	100000 Cycles	21.2 mm	Rectangular	36.6 mm	85 °C	-20 °C	On-Off	14 V	125 V	cULus ENEC	0.25 in	Quick Connect	No Marking	Panel Mount Snap-In	SPST	Black	20 A 21 A	Concave (Curved)	IP56	Dust Protected Water Resistant
