K14-271.222101
ActiveEAO

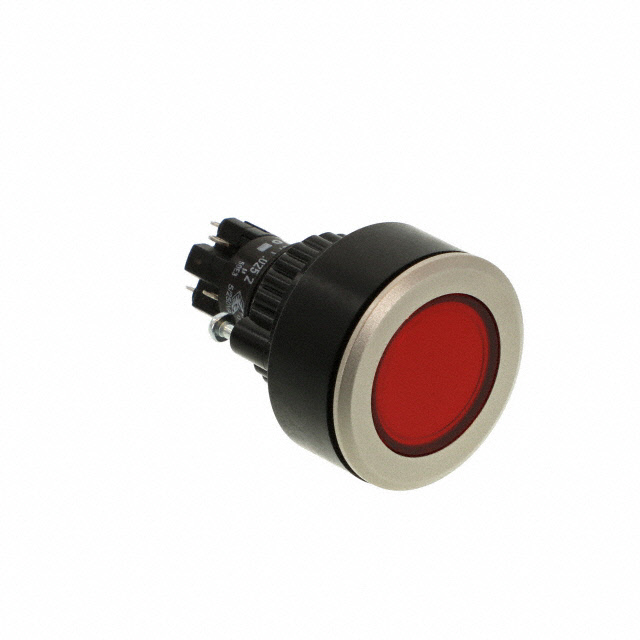

SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K14-271.222101
ActiveEAO
SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | K14-271.222101 | K14-271 Series |
|---|---|---|
| - | - | |
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | DPST-NO/NC | DPST-NO/NC |
| Color - Actuator/Cap | Red | Black, Green, Red |
| Current Rating (Amps) | 5 A | 5 A |
| Illumination Type, Color | Red, LED | LED, Green, Red |
| Illumination Voltage (Nominal) | 24 VAC/DC | 24 VAC/DC |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles | 1000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C | 55 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 30.5 mm | 22.3 - 30.5 mm |
| Switch Function | On-Off, Off-On | On-Off, Off-On |
| Termination Style | Solder Lug | Solder Lug |
| Type | Illuminated, Standard | Standard, Illuminated |
| Voltage Rating - AC | 250 V | 250 V |
| Voltage Rating - DC | - | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 74.89 | |
| 10 | $ 64.59 | |||
| 25 | $ 60.88 | |||
| 50 | $ 58.21 | |||
| 100 | $ 55.66 | |||
K14-271 Series
INDUSTRIAL PUSHBUTTON SWITCH, 14 SERIES, 22.3 MM, SPST-NO, SPST-NC, MAINTAINED, ROUND FLUSH
| Part | Actuator Marking | Type | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Ingress Protection | Panel Cutout Dimensions [diameter] | Termination Style | Current Rating (Amps) | Switch Function | Actuator Type | Voltage Rating - AC | Circuit | Color - Actuator/Cap | Mounting Type | Voltage Rating - DC | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
No Marking | Standard | 55 °C | -25 °C | 1000000 Cycles | IP67 - Dust Tight, Waterproof | 22.3 mm | Solder Lug | 5 A | Off-On, On-Off | Button, Flush, Round | 250 V | DPST-NO/NC | Black | Panel Mount, Front | ||||
No Marking | Illuminated, Standard | 55 °C | -25 °C | 1000000 Cycles | IP67 - Dust Tight, Waterproof | 22.3 mm | Solder Lug | 5 A | Off-On, On-Off | Button, Flush, Round | 250 V | DPST-NO/NC | Green | Panel Mount, Front | 250 V | 24 VAC/DC | Green, LED | |
No Marking | Illuminated, Standard | 55 °C | -25 °C | 1000000 Cycles | IP67 - Dust Tight, Waterproof | 22.3 mm | Solder Lug | 5 A | Off-On, On-Off | Button, Flush, Round | 250 V | DPST-NO/NC | Red | Panel Mount, Front | 250 V | 24 VAC/DC | LED, Red | |
No Marking | Illuminated, Standard | 55 °C | -25 °C | 1000000 Cycles | IP67 - Dust Tight, Waterproof | 30.5 mm | Solder Lug | 5 A | Off-On, On-Off | Button, Flush, Round | 250 V | DPST-NO/NC | Green | Panel Mount, Front | 24 VAC/DC | Green, LED | ||
No Marking | Illuminated, Standard | 55 °C | -25 °C | 1000000 Cycles | IP67 - Dust Tight, Waterproof | 30.5 mm | Solder Lug | 5 A | Off-On, On-Off | Button, Flush, Round | 250 V | DPST-NO/NC | Red | Panel Mount, Front | 24 VAC/DC | LED, Red |
Description
General part information
K14-271 Series
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
