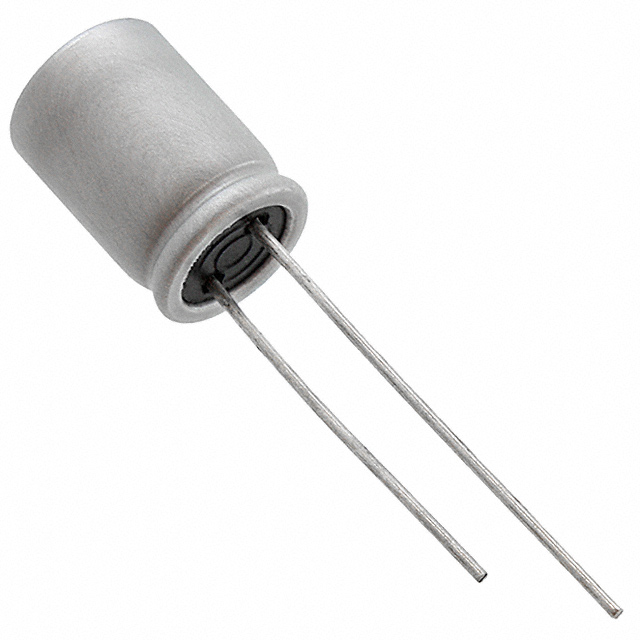

20SEPF390M

Active

Panasonic Industrial Automation Sales

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (SOLID POLYMER), 20V, 20% +TOL, 20% -TOL, 390UF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

20SEPF390M

Active

Panasonic Industrial Automation Sales

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (SOLID POLYMER), 20V, 20% +TOL, 20% -TOL, 390UF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20SEPF390M

Applications	General Purpose
Capacitance	390 µF
ESR (Equivalent Series Resistance)	14 mOhms
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	4.95 A
Ripple Current @ Low Frequency	247.5 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	20 V

20SEPF Series

Part	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Ripple Current @ High Frequency	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Lifetime @ Temp.	Mounting Type	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 20SEPF390M+TSS	Polymer	0.315 "	8 mm	Radial Can	247.5 mA	105 ░C	-55 °C	390 µF	4.95 A	General Purpose	12 mm	0.472 "	20 %	5000 Hrs	Through Hole	14 mOhms	3.5 mm	0.138 in	20 V
Panasonic Industrial Automation Sales 20SEPF120M	Polymer	0.248 in	6.3 mm	Radial Can	160 mA	105 ░C	-55 °C	120 µF	3.2 A	General Purpose			20 %	5000 Hrs	Through Hole	25 mOhm	2.5 mm	0.098 in	20 V	0.236 in	6 mm
Panasonic Industrial Automation Sales 20SEPF120M+TSS	Polymer	0.248 in	6.3 mm	Radial Can	160 mA	105 ░C	-55 °C	120 µF	3.2 A	General Purpose			20 %	5000 Hrs	Through Hole	25 mOhm	2.5 mm	0.098 in	20 V	0.236 in	6 mm
Panasonic Industrial Automation Sales 20SEPF560M+T	Polymer	0.394 in	10 mm	Radial Can	270 mA	105 ░C	-55 °C	560 µF	5.4 A	General Purpose	13 mm	0.512 "	20 %	5000 Hrs	Through Hole	12 mOhms	5 mm	0.197 in	20 V
Panasonic Industrial Automation Sales 20SEPF390M	Polymer	0.315 "	8 mm	Radial Can	247.5 mA	105 ░C	-55 °C	390 µF	4.95 A	General Purpose	12 mm	0.472 "	20 %	5000 Hrs	Through Hole	14 mOhms	3.5 mm	0.138 in	20 V
Panasonic Industrial Automation Sales 20SEPF180M+TSS	Polymer	0.315 "	8 mm	Radial Can	160 mA	105 ░C	-55 °C	180 çF	3.2 A	General Purpose			20 %	5000 Hrs	Through Hole	25 mOhm	3.5 mm	0.138 in	20 V	0.276 "	7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.66
		10	$ 1.14
		50	$ 0.76
		100	$ 0.61
		500	$ 0.58
		1000	$ 0.56

Description

General part information

20SEPF Series

390 µF 20 V Aluminum - Polymer Capacitors Radial, Can 14mOhm 5000 Hrs @ 105°C
