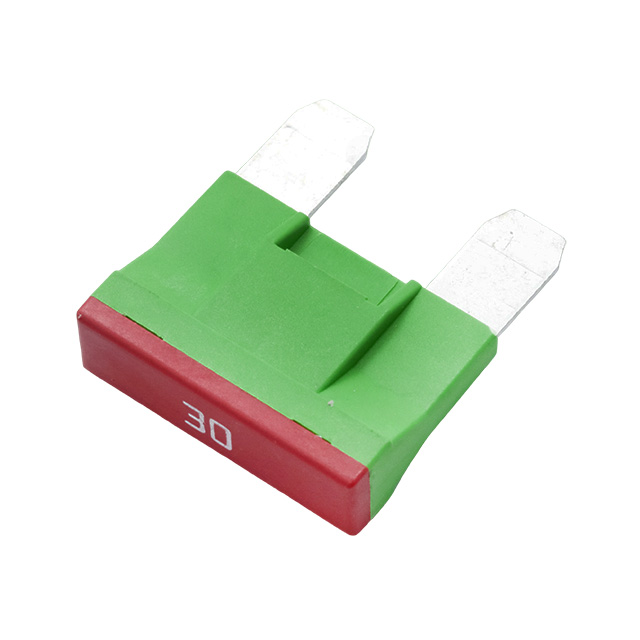

ANX58-UL-30A

Active

OptiFuse

FUSE AUTO 30A 58VDC BLADE MAX

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 30A 58VDC BLADE MAX

Technical Specifications

Parameters and characteristics for this part

Specification	ANX58-UL-30A

Approval Agency	cURus, UL 248
Breaking Capacity @ Rated Voltage	1 kA
Color	Green
Current Rating (Amps)	30 A
DC Cold Resistance	0.0022 Ohms
Fuse Type	Automotive
Melting I²t	3330 I²t
Mounting Type	Requires Holder
Package / Case	Blade, Max
Response Time	Fast Blow
Size / Dimension [x]	30 mm
Size / Dimension [x]	1.181 in
Size / Dimension [y]	8.8 mm
Size / Dimension [y]	0.346 in
Size / Dimension [z]	21.5 mm
Size / Dimension [z]	0.846 in
Voltage Rating - DC	58 VDC

FUSE AUTO 30A 58VDC BLADE MAX

Part	Voltage Rating - DC	Current Rating (Amps)	Fuse Type	Mounting Type	Melting I²t	DC Cold Resistance	Breaking Capacity @ Rated Voltage	Response Time	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Approval Agency	Package / Case	Color
OptiFuse ANX58-UL-30A	58 VDC	30 A	Automotive	Requires Holder	3330 I²t	0.0022 Ohms	1 kA	Fast Blow	8.8 mm	0.346 in	21.5 mm	0.846 in	30 mm	1.181 in	cURus, UL 248	Blade, Max	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.09

General part information

30 A AC 58 V DC Fuse Automotive Requires Holder Blade, Max
