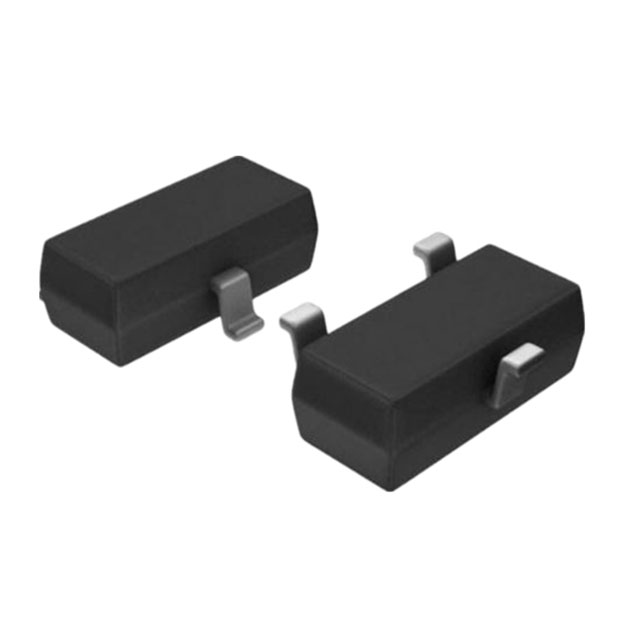

BAS16

Active

MDD

DIODE GEN PURP 75V 150MA SOT23

Search across all available documentation for this part.

Active

MDD

DIODE GEN PURP 75V 150MA SOT23

Technical Specifications

Parameters and characteristics for this part

Specification	BAS16

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-23
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If	855 mV

DIODE GEN PURP 75V 150MA SOT23

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Speed	Speed	Package / Case	Current - Reverse Leakage @ Vr	Technology	Supplier Device Package	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Capacitance @ Vr, F	Current - Average Rectified (Io)
MDD BAS16	75 V	855 mV	Any Speed	200 mA	SC-59, SOT-23-3, TO-236-3	1 µA	Standard	SOT-23	4 ns	150 °C	-55 °C	Surface Mount	4 pF	150 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 75 V 150mA Surface Mount SOT-23
