DMS-20LCD-2-5-C
ActiveVOLTMETER, DMS-20LCD SERIES, DC VOLTAGE, -20V TO +20V, 3.5 DIGITS, 4.75 V TO 5.25 V
Deep-Dive with AI
Search across all available documentation for this part.
DMS-20LCD-2-5-C
ActiveVOLTMETER, DMS-20LCD SERIES, DC VOLTAGE, -20V TO +20V, 3.5 DIGITS, 4.75 V TO 5.25 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DMS-20LCD-2-5-C | DMS-20LCD Series |
|---|---|---|
| - | - | |
| Display Characters - Height | 9.4 mm | 9.4 mm |
| Display Characters - Height | 0.37 in | 0.37 in |
| Display Type | LCD - Black Characters | LCD - Black Characters, LCD - Black Characters, Aqua Backlight |
| Features | - | Bezel Sold Separately |
| Measuring Range | - | 0.2 - 200 V |
| Measuring Range | - | -200 - 18 V |
| Measuring Type | Voltage | Voltage |
| Mounting Type | - | Panel Mount - Bezel |
| Number of Characters Per Row | 3.5 | 3 - 3.5 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Panel Cutout Dimensions [x] | 33.93 mm | 33.93 mm |
| Panel Cutout Dimensions [y] | 21.29 mm | 21.29 mm |
| Termination Style | PC Pin | Screw Terminal, PC Pin |
| Type | Voltmeter | Voltmeter |
| Voltage - Supply | 5 V | 5 - 24 V |
| Voltage - Supply | - | Loop Power |
| Weight | 11.34 g | 10.89 - 14.06 g |
| Weight | 0.025 lb | 0.024 - 0.031 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DMS-20LCD Series
VOLTMETER 200V LCD PANEL MOUNT
| Part | Type | Number of Characters Per Row | Weight | Weight | Termination Style | Measuring Range [Max] | Measuring Range [Min] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Measuring Type | Mounting Type | Voltage - Supply | Display Type | Display Characters - Height | Display Characters - Height | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DMS-20LCD-3-5-C | Voltmeter | 3.5 | 0.024 lb | 10.89 g | Screw Terminal | 200 V | -200 V | 33.93 mm | 21.29 mm | Voltage | Panel Mount - Bezel | 5 V | LCD - Black Characters | 9.4 mm | 0.37 in | 60 °C | 0 °C | ||
Murata Power Solutions Inc. DMS-20LCD-2-DCM-C | Voltmeter | 3 | 0.031 lb | 14.06 g | Screw Terminal | 90 VDC | 18 VDC | 33.93 mm | 21.29 mm | Voltage | Panel Mount - Bezel | LCD - Black Characters | 9.4 mm | 0.37 in | 60 °C | 0 °C | Loop Power | ||
Murata Power Solutions Inc. DMS-20LCD-2-5-C | Voltmeter | 3.5 | 0.025 lb | 11.34 g | PC Pin | 33.93 mm | 21.29 mm | Voltage | 5 V | LCD - Black Characters | 9.4 mm | 0.37 in | 60 °C | 0 °C | |||||
Murata Power Solutions Inc. DMS-20LCD-0-9-C | Voltmeter | 3.5 | 0.025 lb | 11.34 g | PC Pin | 0.2 VDC | -200 mV | 33.93 mm | 21.29 mm | Voltage | 9 V | LCD - Black Characters | 9.4 mm | 0.37 in | 60 °C | 0 °C | |||
Murata Power Solutions Inc. DMS-20LCD-0-9-C | |||||||||||||||||||
Murata Power Solutions Inc. DMS-20LCD-1-DCM-C | |||||||||||||||||||
Murata Power Solutions Inc. DMS-20LCD-0-9B-C | Voltmeter | 3.5 | 0.024 lb | 10.89 g | Screw Terminal | 0.2 VDC | -200 mV | 33.93 mm | 21.29 mm | Voltage | Panel Mount - Bezel | 9 V | LCD - Black Characters, Aqua Backlight | 9.4 mm | 0.37 in | 60 °C | 0 °C | ||
Murata Power Solutions Inc. DMS-20LCD-0-5B-C | Voltmeter | 3.5 | 0.025 lb | 11.34 g | PC Pin | 0.2 VDC | -200 mV | 33.93 mm | 21.29 mm | Voltage | 5 V | LCD - Black Characters, Aqua Backlight | 9.4 mm | 0.37 in | 60 °C | 0 °C | |||
Murata Power Solutions Inc. DMS-20LCD-3-9B-C | Voltmeter | 3.5 | 0.024 lb | 10.89 g | Screw Terminal | 200 V | -200 V | 33.93 mm | 21.29 mm | Voltage | Panel Mount - Bezel | 9 V | LCD - Black Characters, Aqua Backlight | 9.4 mm | 0.37 in | 60 °C | 0 °C | ||
Murata Power Solutions Inc. DMS-20LCD-1-9B-C | Voltmeter | 3.5 | 0.024 lb | 10.89 g | Screw Terminal | 2 V | -2 V | 33.93 mm | 21.29 mm | Voltage | Panel Mount - Bezel | 9 V | LCD - Black Characters, Aqua Backlight | 9.4 mm | 0.37 in | 60 °C | 0 °C |
Description
General part information
DMS-20LCD Series

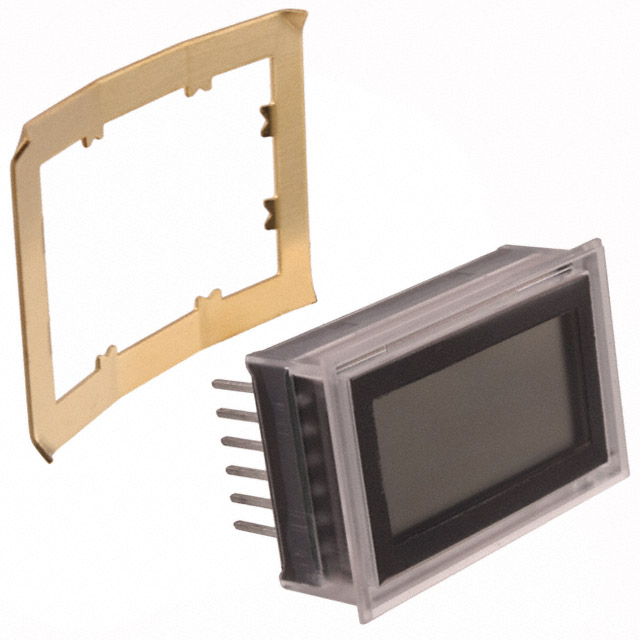

The DMS-20LCD-2-5-C is a 3.5-digit LCD Display Digital Panel Voltmeter is epoxy encapsulated in a subminiature (1.38 x 0.88 x 0.43-inch), 12-pin DIP package. This completely self-contained, fully operational meter offers a combination of ruggedness, long-term reliability and component-like ease-of-use. It is an extremely accurate (±1 count) and are only slightly larger than their 0.37-inch/9.4mm, enhanced-contrast, LCD displays. It incorporates a built-in bezel and are easily mounted in either panels or PC boards.
