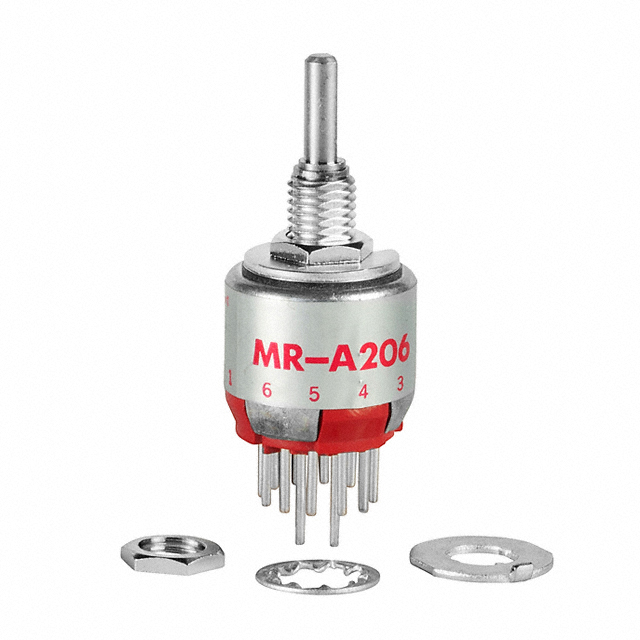

MRA206

Obsolete

NKK Switches

SWITCH ROTARY 2-6POS 250MA 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROTARY 2-6POS 250MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MRA206

Actuator Length [x]	10 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	30 °
Circuit per Deck [custom]	DP6T
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Non-Shorting
Current Rating (Amps)	250 mA
Depth Behind Panel	17 mm
Features	Process Sealed
Index Stops	Adjustable
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	2
Number of Positions [Max]	6
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	0.25 in
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Index Stops	Number of Positions [Max]	Number of Positions [Min]	Contact Material	Angle of Throw	Contact Finish	Number of Poles per Deck	Voltage Rating - AC	Current Rating (Amps)	Actuator Type	Actuator Length [x]	Termination Style	Contact Timing	Panel Cutout Dimensions [diameter]	Number of Decks [custom]	Mounting Type	Features	Depth Behind Panel	Circuit per Deck [custom]	Actuator Type [diameter]
NKK Switches MRA206-BH	Adjustable	6	2	Copper	30 °	Silver	2	125 V	250 mA	Knob	14.3 mm	PC Pin	Non-Shorting	0.25 in	1	Panel Mount Through Hole	Process Sealed	17 mm	DP6T
NKK Switches MRA206-CH	Adjustable	6	2	Copper	30 °	Silver	2	125 V	250 mA	Knob	15.8 mm	PC Pin	Non-Shorting	0.25 in	1	Panel Mount Through Hole	Process Sealed	17 mm	DP6T
NKK Switches MRA206-BE	Adjustable	6	2	Copper	30 °	Silver	2	125 V	250 mA	Knob	14.3 mm	PC Pin	Non-Shorting	0.25 in	1	Panel Mount Through Hole	Process Sealed	17 mm	DP6T
NKK Switches MRA206	Adjustable	6	2	Copper	30 °	Silver	2	125 V	250 mA	Flatted	10 mm	PC Pin	Non-Shorting	0.25 in	1	Panel Mount Through Hole	Process Sealed	17 mm	DP6T	3.17 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rotary Switch 2 ~ 6 Position DP6T 250mA (AC) 125 VAC Panel Mount, Through Hole
