PPTC091LFBN

Obsolete

Sullins Connector Solutions

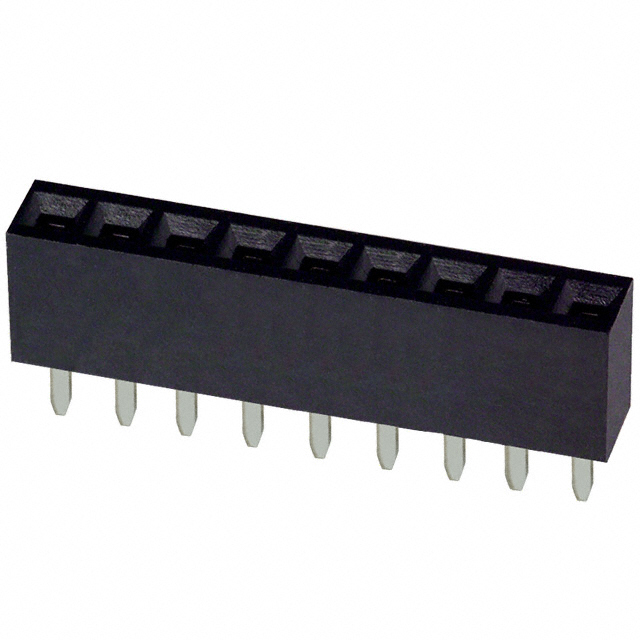

CONN HDR 9POS 0.1 TIN PCB

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 9POS 0.1 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC091LFBN

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Mounting Type	Fastening Type	Voltage Rating	Insulation Material	Number of Rows	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Material	Contact Shape	Contact Finish - Post	Number of Positions	Insulation Color	Termination	Contact Length - Post [x]
Sullins Connector Solutions PPTC091LGBN-RC	-40 °C	105 ░C	Header	3.15 mm	0.124 "	All	Female Socket	UL94 V-0	0.1 in	2.54 mm	Through Hole Right Angle	Push-Pull	250 VDC	Polyester	1	0.1 in	2.54 mm	3 A	Phosphor Bronze	Square	Tin	9	Black	Solder
Sullins Connector Solutions PPTC091LGBN	-40 °C	105 ░C	Header	3.15 mm	0.124 "	All	Female Socket	UL94 V-0	0.1 in	2.54 mm	Through Hole Right Angle	Push-Pull	250 VDC	Polyester	1	0.1 in	2.54 mm	3 A	Phosphor Bronze	Square	Tin	9	Black	Solder
Sullins Connector Solutions PPTC091LFBN-RC	-40 °C	105 ░C	Header	3.2 mm		All	Female Socket	UL94 V-0	0.1 in	2.54 mm	Through Hole	Push-Pull	250 VDC	Polyester	1	0.335 "	8.51 mm	3 A	Phosphor Bronze	Square	Tin	9	Black	Solder	0.126 in
Sullins Connector Solutions PPTC091LFBN	-40 °C	105 ░C	Header	3.2 mm		All	Female Socket	UL94 V-0	0.1 in	2.54 mm	Through Hole	Push-Pull	250 VDC	Polyester	1	0.335 "	8.51 mm	3 A	Phosphor Bronze	Square	Tin	9	Black	Solder	0.126 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9 Position Header Connector 0.100" (2.54mm) Through Hole Tin
