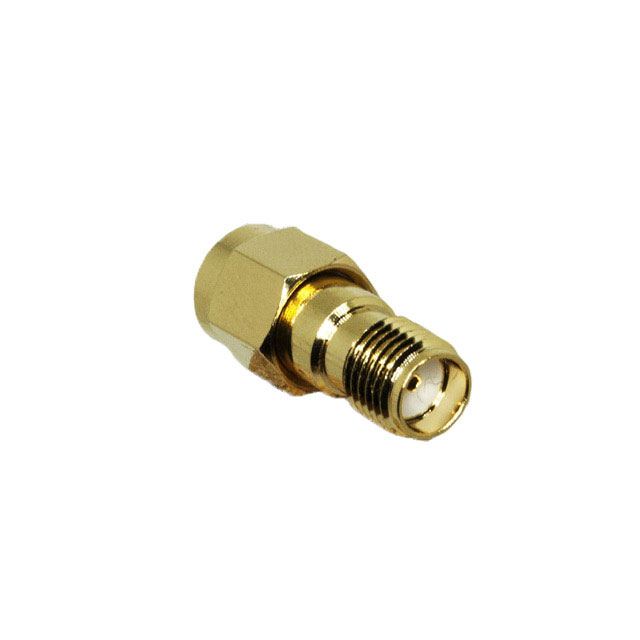

ADP-RPSM-SMAF-G

Active

TE Connectivity Linx

RP-SMA PLUG TO SMA JACK ADAPTER

Search across all available documentation for this part.

Active

TE Connectivity Linx

RP-SMA PLUG TO SMA JACK ADAPTER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ADP-RPSM-SMAF-G	ADP-RPSM Series

Adapter Series	SMA to RP-SMA	SMA to RP-SMA
Adapter Type	Plug to Jack	Plug to Jack
Body Finish	Gold	Nickel, Gold
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Male to Female	Male to Female
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	RP-SMA Plug, Female Socket	RP-SMA Jack, Male Pin, RP-SMA Plug, Female Socket
Convert To (Adapter End)	SMA Jack, Female Socket	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz	12.4 - 18 GHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Style	Straight	Straight

CONN ADAPT SMA JACK-RP-SMA PLUG

Part	Style	Frequency - Max [Max]	Body Finish	Center Contact Plating	Adapter Series	Mating Cycles	Center Gender	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Convert From (Adapter End)	Mounting Type	Conversion Type	Center Contact Material	Convert To (Adapter End)	Dielectric Material	Impedance
TE Connectivity Linx ADP-RPSM-SMAF	Straight	12.4 GHz	Nickel	Gold	SMA to RP-SMA	500	Male to Female	Brass	-65 ░C	165 °C	Plug to Jack	RP-SMA Jack, Male Pin	Free Hanging (In-Line)	Between Series	Brass	Female Socket, SMA Jack	Polytetrafluoroethylene (PTFE)	50 Ohms
TE Connectivity Linx ADP-RPSM-SMAF-G	Straight	18 GHz	Gold	Gold	SMA to RP-SMA	500	Male to Female	Brass	-65 ░C	165 °C	Plug to Jack	Female Socket, RP-SMA Plug	Free Hanging (In-Line)	Between Series	Beryllium Copper	Female Socket, SMA Jack	Polytetrafluoroethylene (PTFE)	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.05

General part information

Adapter Coaxial Connector RP-SMA Plug, Female Socket To SMA Jack, Female Socket 50 Ohms
