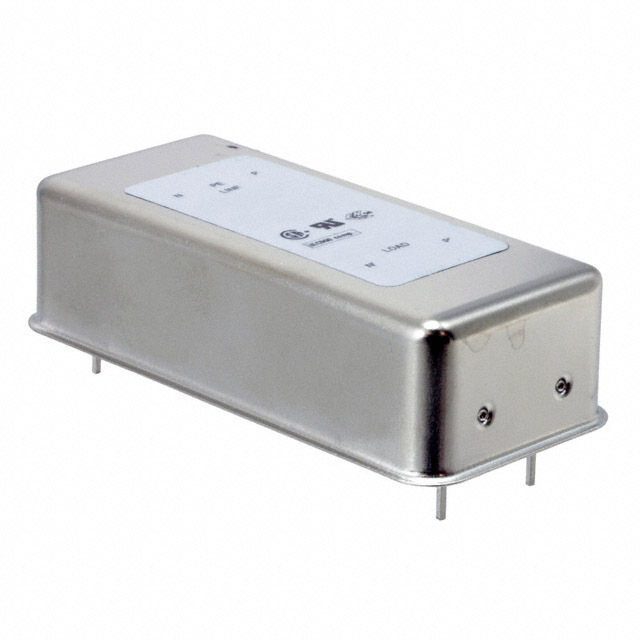

FN410-6-02

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 6A TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 6A TH

Technical Specifications

Parameters and characteristics for this part

Specification	FN410-6-02

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Two Stage
Current	6 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	800 µH
Mounting Type	Through Hole
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	PC Pins
Voltage - Rated AC	250 V

Part	Mounting Type	Frequency - Operating	Termination Style	Inductance	Filter Type	Current	Applications	Configuration	Operating Temperature [custom]	Voltage - Rated AC	Approval Agency
TE Connectivity Raychem Cable Protection FN410-1-02	Through Hole	400 Hz	PC Pins	10 mH	Single Phase	1 A	General Purpose	Two Stage	-25 °C 100 °C	250 V	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN410-0.5-02	Through Hole	400 Hz	PC Pins	24 mH	Single Phase	500 mA	General Purpose	Two Stage	-25 °C 100 °C	250 V	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN410-6-02	Through Hole	400 Hz	PC Pins	800 µH	Single Phase	6 A	General Purpose	Two Stage	-25 °C 100 °C	250 V	CSA ENEC UR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 6 A 250V DC ~ 400Hz Two Stage PC Pins
