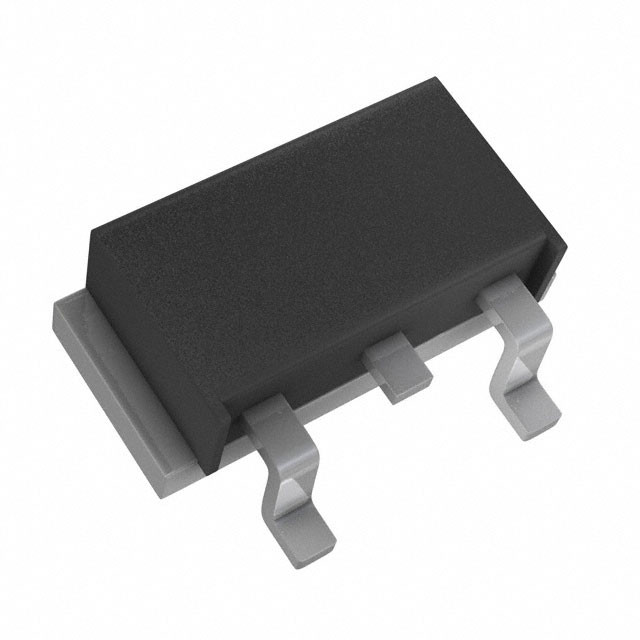

61CNQ045SL

Active

SMC Diode Solutions

DIODE ARR SCHOTT 45V 30A PRM3-SL

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE ARR SCHOTT 45V 30A PRM3-SL

Technical Specifications

Parameters and characteristics for this part

Specification	61CNQ045SL

Current - Average Rectified (Io) (per Diode)	30 A
Current - Reverse Leakage @ Vr	5 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	PRM3-SL
Speed	200 mA, 500 ns
Supplier Device Package	PRM3-SL
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If	680 mV

Part	Current - Average Rectified (Io) (per Diode)	Technology	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Package / Case	Mounting Type
SMC Diode Solutions 61CNQ045SM	30 A	Schottky	5 mA	175 ░C	-55 C	PRM3-SM	200 mA 500 ns	45 V	1 Pair Common Cathode	680 mV	PRM3-SM	Through Hole
SMC Diode Solutions 61CNQ035SM	30 A	Schottky	5 mA	175 ░C	-55 C	PRM3-SM	200 mA 500 ns	35 V	1 Pair Common Cathode	680 mV	PRM3-SM	Through Hole
SMC Diode Solutions 61CNQ045	30 A	Schottky	5 mA	175 ░C	-55 C	PRM3	200 mA 500 ns	45 V	1 Pair Common Cathode	680 mV	PRM3	Chassis Mount
SMC Diode Solutions 61CNQ040SM	30 A	Schottky	5 mA	175 ░C	-55 C	PRM3-SM	200 mA 500 ns	40 V	1 Pair Common Cathode	680 mV	PRM3-SM	Through Hole
SMC Diode Solutions 61CNQ040SL	30 A	Schottky	5 mA	175 ░C	-55 C	PRM3-SL	200 mA 500 ns	40 V	1 Pair Common Cathode	680 mV	PRM3-SL	Surface Mount
SMC Diode Solutions 61CNQ035SL	30 A	Schottky	5 mA	175 ░C	-55 C	PRM3-SL	200 mA 500 ns	35 V	1 Pair Common Cathode	680 mV	PRM3-SL	Surface Mount
SMC Diode Solutions 61CNQ045SL	30 A	Schottky	5 mA	175 ░C	-55 C	PRM3-SL	200 mA 500 ns	45 V	1 Pair Common Cathode	680 mV	PRM3-SL	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.74

General part information

Diode Array 1 Pair Common Cathode 45 V 30A Surface Mount PRM3-SL
