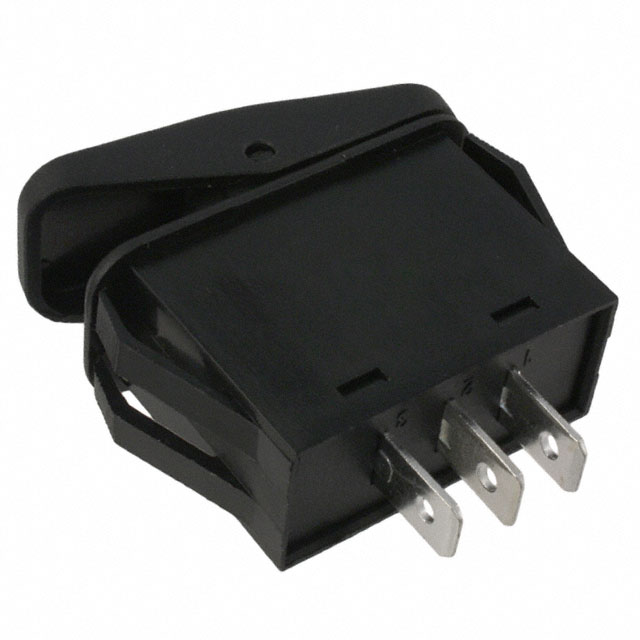

GRB258C01BB

Active

CW Industries

SWITCH ROCKER SPDT 20A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER SPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB258C01BB

Actuator Marking	No Marking
Actuator Type	Convex (Reverse V)
Approval Agency	cULus, VDE, ENEC
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.8 mm
Panel Cutout Dimensions [y]	15.3 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Termination Style	Current Rating (Amps)	Mounting Type	Switch Function	Actuator Type	Actuator Marking	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Ingress Protection	Approval Agency	Voltage Rating - AC	Mechanical Life
CW Industries GRB258C01BB	Quick Connect - 0.250" (6.3mm)	20 A	Panel Mount Snap-In	On-On	Convex (Reverse V)	No Marking	SPDT	85 °C	-20 C	15.3 mm	36.8 mm	Black	IP56 - Dust Protected Water Resistant	cULus ENEC VDE	125 V	100000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.32

General part information

Rocker Switch SPDT 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
