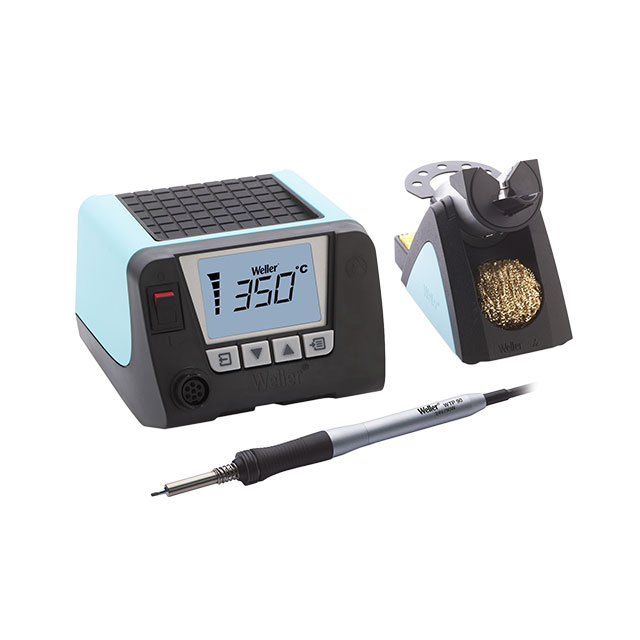

WT1010N

Active

Apex Tool Group

SOLDERING STATION 90W 1 CH 120V

Search across all available documentation for this part.

Active

Apex Tool Group

SOLDERING STATION 90W 1 CH 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WT1010N	WT1010 Series

Base Unit	WT1	WT1, WT1H
Control/Display Type	Digital	Digital
Features	ESD Safe, LCD Display	ESD Safe, LCD Display
Includes	Soldering Pencil	Soldering Pencil
Number of Channels	1	1
Plug Type	Not Specified, Included	Not Specified, Included
Supplied Iron, Tweezer, Handle	WTP90	WTP90, WP120
Supplied Tips/Nozzles	XNTA	XNTA, XTB
Temperature Range [Max]	450 °C	450 - 550 °C
Temperature Range [Max]	850 °F	850 - 950 °F
Temperature Range [Min]	150 °F	150 °F
Temperature Range [Min]	50 °C	50 °C
Tip Cleaner	Scouring Pad and Sponge	Scouring Pad and Sponge
Type	Soldering	Soldering
Voltage - Input	120 V	120 V
Wattage	90 W	90 - 150 W
Workstand	WSR200	WSR200, WSR201

SOLDERING STATION 90W 1 CH 120V

Part	Features	Plug Type	Wattage	Supplied Iron, Tweezer, Handle	Tip Cleaner	Supplied Tips/Nozzles	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Voltage - Input	Includes	Type	Number of Channels	Control/Display Type	Base Unit	Workstand
Apex Tool Group WT1010N	ESD Safe, LCD Display	Included, Not Specified	90 W	WTP90	Scouring Pad and Sponge	XNTA	150 °F	450 °C	50 °C	850 °F	120 V	Soldering Pencil	Soldering	1	Digital	WT1	WSR200
Apex Tool Group WT1010HN	ESD Safe, LCD Display	Included, Not Specified	150 W	WP120	Scouring Pad and Sponge	XTB	150 °F	550 °C	50 °C	950 °F	120 V	Soldering Pencil	Soldering	1	Digital	WT1H	WSR201

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 530.00

General part information

SOLDERING STATION 90W 1 CH 120V
