M85049/26-1-14W

Active

Amphenol Interconnect India

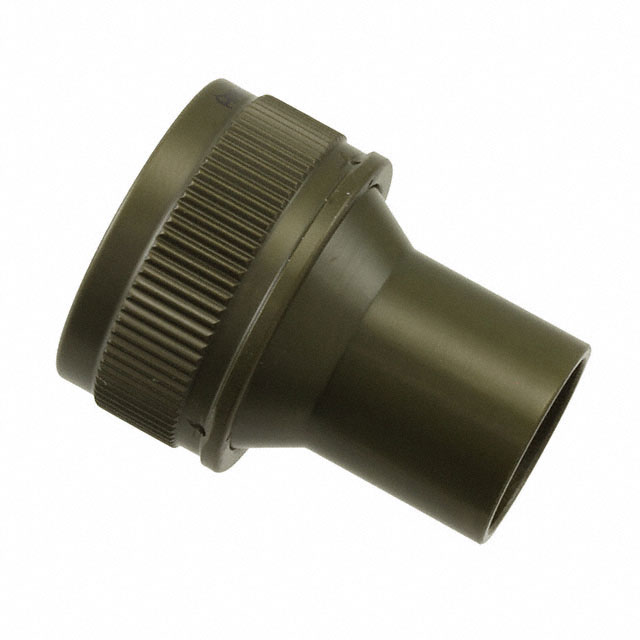

CONN BACKSHELL SZ14 OLIV 7/8-20

Deep-Dive with AI

Search across all available documentation for this part.

M85049/26-1-14W

Active

Amphenol Interconnect India

CONN BACKSHELL SZ14 OLIV 7/8-20

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 18.90
		10	$ 16.38
		25	$ 15.52
		50	$ 15.30
		100	$ 13.50
		250	$ 12.60
		500	$ 12.33

Description

General part information

M85049/26 Series

Olive Connector Backshell 7/8-20 UNEF 14

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/26-1-14W	M85049/26 Series

Cable Exit	180 °	180 °
Cable Opening	-	1.11 - 2.57 in
Cable Opening	-	28.19 - 65.28 mm
Cable Opening [custom]	0.54 in	0.25 - 2.07 in
Cable Opening [custom]	13.72 mm	6.35 - 52.58 mm
Color	Olive	Black, Olive
Diameter - Outside [diameter]	0.98 in	0.62 - 3.22 in
Diameter - Outside [diameter]	24.9 mm	15.75 - 81.79 mm
For Use With/Related Products	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium Nickel	Zinc Cobalt, Cadmium Nickel
Shell Size - Insert	14	7 - 48
Shell Size - Insert	-	12, 14, 27, 18
Shielding	Unshielded	Unshielded
Thread Size	7/8-20 UNEF	7/8-20 UNEF
Type	Backshell	Backshell

M85049/26 Series

CONN BACKSHELL SZ44 BLACK

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	For Use With/Related Products	Color	Shell Size - Insert	Material	Cable Exit	Cable Opening [diameter]	Cable Opening [diameter]	Shielding	Plating	Type	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Thread Size
Amphenol Interconnect India M85049/26-3-44Z	75.44 mm	2.97 in	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Black	44	Aluminum Alloy	180 °	2.32 in	58.93 mm	Unshielded	Zinc Cobalt	Backshell
Amphenol Interconnect India M85049/26-3-14Z	24.9 mm	0.98 in	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Black		Aluminum Alloy	180 °			Unshielded	Zinc Cobalt	Backshell	12, 14	0.54 in	13.72 mm
Amphenol Interconnect India M85049/26-1-48Z	81.79 mm	3.22 in	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Black	48	Aluminum Alloy	180 °	2.57 in	65.28 mm	Unshielded	Zinc Cobalt	Backshell
Amphenol Interconnect India M85049/26-3-24Z	40.39 mm	1.59 in	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Black	24	Aluminum Alloy	180 °	1.11 in	28.19 mm	Unshielded	Zinc Cobalt	Backshell
Amphenol Interconnect India M85049/26-1-14W	24.9 mm	0.98 in	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Olive	14	Aluminum Alloy	180 °			Unshielded	Cadmium Nickel	Backshell		0.54 in	13.72 mm	7/8-20 UNEF
Amphenol Interconnect India M85049/26-1-36Z	62.74 mm	2.47 in	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Black	36	Aluminum Alloy	180 °			Unshielded	Zinc Cobalt	Backshell		1.85 in	46.99 mm
Amphenol Interconnect India M85049/26-1-18Z	30.99 mm	1.22 in	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Black		Aluminum Alloy	180 °			Unshielded	Zinc Cobalt	Backshell	18, 27
Amphenol Interconnect India M85049/26-1-10Z	18.54 mm	0.73 in	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Black	10	Aluminum Alloy	180 °			Unshielded	Zinc Cobalt	Backshell		0.33 in	8.38 mm
Amphenol Interconnect India M85049/26-1-16Z	28.19 mm	1.11 in	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Black	16, 19	Aluminum Alloy	180 °			Unshielded	Zinc Cobalt	Backshell		0.67 in	17.02 mm
Amphenol Interconnect India M85049/26-1-3Z			MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Black		Aluminum Alloy	180 °			Unshielded	Zinc Cobalt	Backshell
