9182 0101000

Active

Belden Inc.

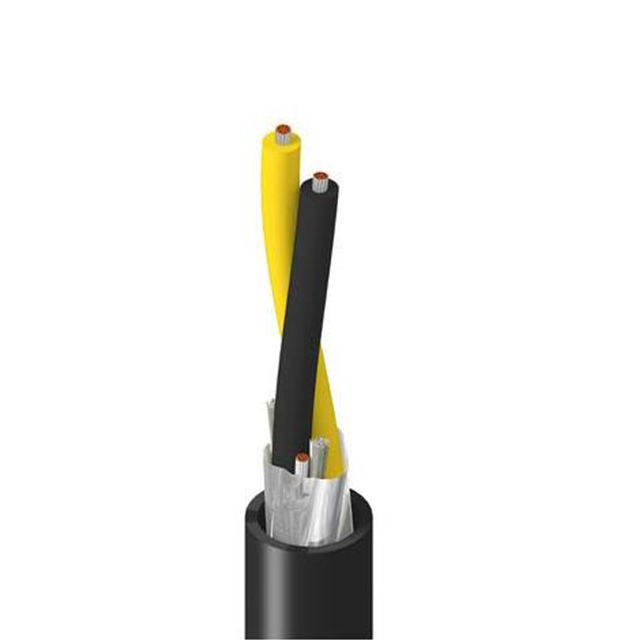

TWINAX 22AWG 150 OHM

Search across all available documentation for this part.

Active

Belden Inc.

TWINAX 22AWG 150 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	9182 0101000

Cable Type	Twinaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	19 Strands
Features	Drain Wire
Impedance	150 Ohms
Jacket (Insulation) Diameter [diameter]	0.345 "
Jacket (Insulation) Diameter [diameter]	8.76 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
VoP, Velocity of Propagation	78
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Conductor Material	Shield Coverage	Jacket (Insulation) Material	Shield Type	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	VoP, Velocity of Propagation	Features	Jacket Color	Wire Gauge	Shield Material	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 9182 0101000	-20 C	60 °C	150 Ohms	Copper Tinned	100 %	Poly-Vinyl Chloride (PVC)	Foil	Twinaxial	0.345 "	8.76 mm	78	Drain Wire	Black	22 AWG	Aluminum	304.8 m	1000 ft	34 AWG	19 Strands

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.56

General part information

Twinaxial Cable 22 AWG 1000.0' (304.80m) 150 Ohms
