737-086-520-206
ActiveEDAC Inc.

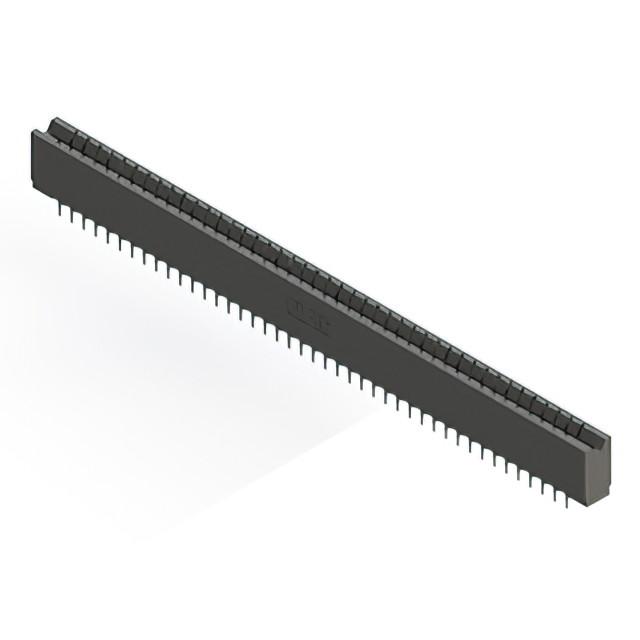

CARD EDGE CONNECTOR, 86 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SOLDER TERMINAL,
Deep-Dive with AI
Search across all available documentation for this part.
737-086-520-206
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 86 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SOLDER TERMINAL,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 737-086-520-206 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 86 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Press-Fit |
| Termination Rows | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 9.71 | |
Description
General part information
737-086 Series
86 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
